This document describes a 24 AWG stranded cable with polyolefin insulation and PVC jacket. It is suitable for various applications including Cat 5e Patch, CobraNet, eSnake, Ethersound, and Digital Audio over Ethernet. It has good physical and mechanical characteristics and complies with relevant standards and environmental regulations.
The Belden 1304A CatSnake is a 24 AWG bonded‑pair stranded cable with polyolefin insulation and a PVC jacket. It is designed for field‑deployable Cat 5e applications such as Ethernet, CobraNet, and digital audio, and meets multiple industry standards.

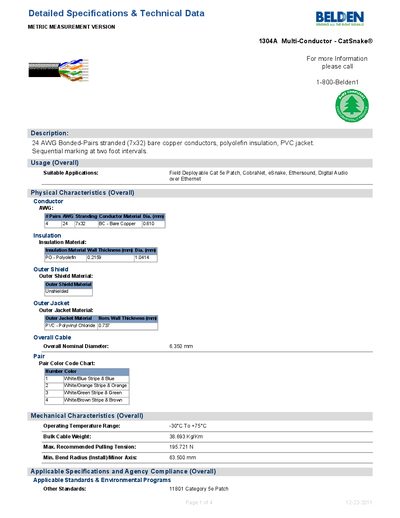

The data sheet provides detailed physical, mechanical, and electrical characteristics, including temperature range, pulling tension, capacitance, resistance, and compliance with EU RoHS, WEEE, and other directives.
| Conductor AWG | 24 AWG |
|---|---|
| Insulation Material | Polyolefin |
| Outer Jacket Material | PVC |
| Overall Nominal Diameter | 6.350 mm |
| Operating Temperature Range | -30 °C to +75 °C |
| Maximum Recommended Pulling Tension | 195.721 N |
| Nominal Mutual Capacitance | 49.215 pF/m |
| Nominal Conductor DC Resistance | 82.025 Ω/km |
The cable operates from –30 °C up to +75 °C.
Yes, it complies with EU RoHS Directive 2002/95/EC.
Yes, the cable is suitable for both indoor and outdoor installations.
The overall nominal diameter is 6.350 mm.
