This is a Belden H121C00 coaxial cable for cable broadband communication networks.

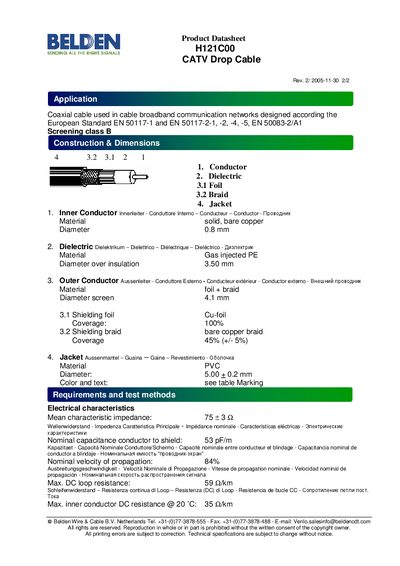

The H121C00 CATV Drop Cable is a coaxial cable designed for broadband communication networks and complies with European standards EN 50117 series. The datasheet describes its construction, including a solid bare‑copper inner conductor, gas‑injected PE dielectric, foil‑and‑braid outer conductor, and a PVC jacket.
Electrical characteristics such as a 75 Ω ±3 Ω characteristic impedance, 53 pF/m capacitance, and 84 % velocity of propagation are listed, along with mechanical data like temperature ranges, minimum bending radius, and cable weight. Ordering information, marking, and packaging details are also provided.
| Inner conductor material | solid, bare copper |
|---|---|
| Inner conductor diameter | 0.8 mm |
| Dielectric material | gas‑injected PE |
| Dielectric outer diameter | 3.50 mm |
| Outer conductor material | foil + braid |
| Outer conductor screen diameter | 4.1 mm |
| Shielding foil coverage | 100 % |
| Shielding braid coverage | 45 % ±5 % |
| Jacket material | PVC |
| Mean characteristic impedance | 75 Ω ±3 Ω |
| Nominal capacitance (conductor‑to‑shield) | 53 pF/m |
| Nominal velocity of propagation | 84 % |
| Return loss (5‑470 MHz) | > 20 dB |
| Screening attenuation (30‑1000 MHz) | 2.8 dB |
| Temperature range (storage/operation) | -15 °C to +70 °C |
| Minimum bending radius | 10 × cable diameter |
| Nominal cable weight | 27 kg/km |
The cable has a mean characteristic impedance of 75 Ω ±3 Ω.
The nominal capacitance between conductor and shield is 53 pF per meter.
The cable can be stored and operated from –15 °C to +70 °C, and installed from –5 °C to +70 °C.
The minimum bending radius is ten times the cable diameter.
