This document is a description of Belden 1234 cable. Belden 1234 cable is a 24 AWG copper cable with FEP Teflon® insulation and is suitable for the following applications: Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422, 100MHz Category 5.

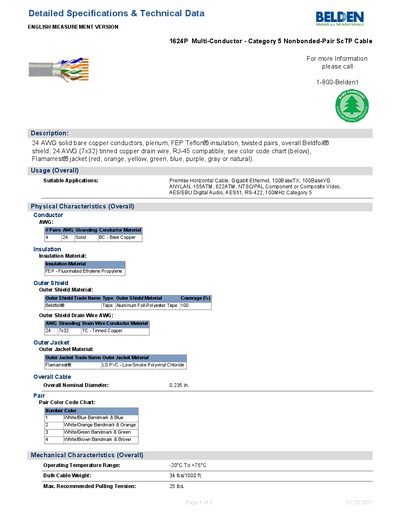

The 1624P cable is a 24 AWG solid bare‑copper multi‑conductor cable with FEP insulation, a Beldfoil® aluminum‑foil shield, and a low‑smoke PVC (Flamarrest® LS) jacket. It is RJ‑45 compatible and suitable for premise horizontal cabling, Gigabit Ethernet, video, audio, and RS‑422 applications.
The document lists physical and mechanical characteristics, electrical performance data, and regulatory compliance (UL, NEC, EU RoHS, CE, etc.). It also includes ordering part numbers, color‑code charts, and revision information.
| Conductor AWG | 24 AWG solid bare copper |
|---|---|
| Outer Shield Material | Beldfoil® Tape (Aluminum Foil‑Polyester Tape) |
| Outer Jacket Material | Flamarrest® LS PVC (Low Smoke Polyvinyl Chloride) |
| Overall Nominal Diameter | 0.235 in. |
| Operating Temperature Range | -20 °C to +75 °C |
| Bulk Cable Weight | 34 lb/1000 ft |
| Max Recommended Pulling Tension | 25 lb |
| Maximum Operating Voltage (UL) | 300 V RMS |
| Maximum Conductor DC Resistance | 9.38 Ω |
The manual specifies a maximum recommended pulling tension of 25 lb.
The outer jacket is made of Flamarrest® LS PVC, a low‑smoke polyvinyl chloride material.
It is rated for operation from –20 °C up to +75 °C.
