CET CEA6200 N-Channel Enhancement Mode Field Effect Transistor Datasheet

FEATURES 60V, 1.8A, RDS(ON) = 250mW @VGS = 10V. RDS(ON) = 330mW @VGS = 4.5V. High dense cell design for extremely low RDS(ON). Rugged and reliable. SOT-89 package.

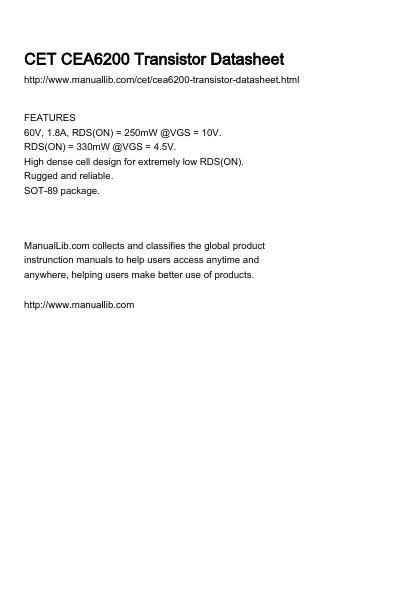

CET CEA6200 N-Channel Enhancement Mode Field Effect Transistor Datasheet - cover page
Brand
CET
Category
Transistor
Document type
Datasheet
Language
English
Pages
5
File format
PDF
File size
253 KB
Published
05 March, 2014
Updated
25 September, 2023
MD5 checksum
C457A53136D6812F1D7C463588AC11FC

About this manual

This document is a preliminary datasheet for the CET CEA6200, an N-Channel Enhancement Mode Field Effect Transistor. It highlights key features such as a 60V drain-source voltage rating, 1.8A continuous drain current, and a low on-resistance of 250mΩ at VGS = 10V. The device is available in a SOT-89 package and is designed for high density and rugged reliability.

What's inside

  • Features
  • Absolute Maximum Ratings
  • Thermal Characteristics
  • Electrical Characteristics
  • Switching Characteristics
  • Drain-Source Diode Characteristics
  • Output Characteristics
  • Transfer Characteristics
  • Capacitance
  • Maximum Safe Operating Area

Specifications

Drain-Source Voltage60 V
Gate-Source Voltage+20 V
Drain Current-Continuous1.8 A
Drain Current-Pulsed7.2 A
Maximum Power Dissipation1.3 W
Operating and Store Temperature Range-55 to 150 °C
Thermal Resistance, Junction-to-Ambient100 °C/W
Static Drain-Source On-Resistance (VGS=10V)250 mΩ
Package TypeSOT-89

Frequently asked questions

What is the continuous drain current of the CEA6200?

The continuous drain current is 1.8 A.

What is the maximum drain-source voltage?

The maximum drain-source voltage is 60 V.

What is the on-resistance at VGS = 10V?

The on-resistance is 250 mΩ when VGS is 10V and ID is 1.8A.
