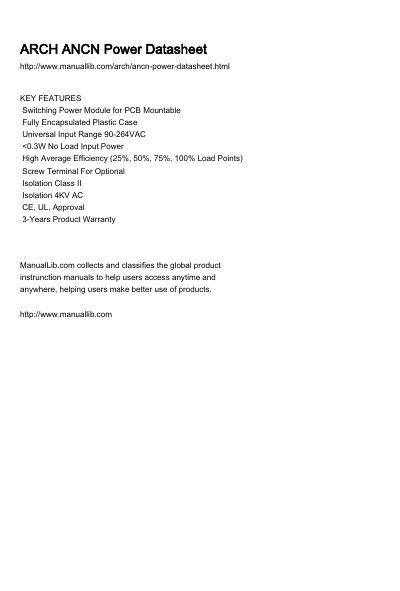

ARCH ANCN Power Datasheet is the specification of ARCH ANCN series switching power modules. This module has the following features: fully encapsulated plastic case, can be mounted on PCB, input voltage range is 90-264VAC, no load input power is less than 0.3W, average efficiency is high (25%, 50%, 75%, 100% load points), optional isolation, supports Class II isolation, supports 4KV AC, CE, UL approved, and 3-year warranty.
This document is a technical datasheet for the ARCH Electronics Corp. ANCN Series AC-DC Power Modules. These are fully encapsulated plastic case switching power modules designed for PCB mounting with a maximum output wattage of 15W.
The module features a universal input range of 90-264VAC or 120-370VDC and offers multiple voltage outputs including 5V, 12V, 15V, and 24V. Key specifications include an isolation class II rating with 4KV AC isolation, high average efficiency across various load points, and protection features such as over-power, over-voltage, and short-circuit protection.
| Max Output Wattage | 15W |
|---|---|
| Input Voltage Range | 90-264 VAC or 120-370 VDC |
| Isolation Class | Class II |
| Operating Temperature | -40°C...+70°C |
| Case Material Flammability | UL 94V-0 |
The maximum output wattage for the ANCN Series is 15W.
Yes, a screw terminal option is available for the ANCN-A2 and ANCN-A5 models.
