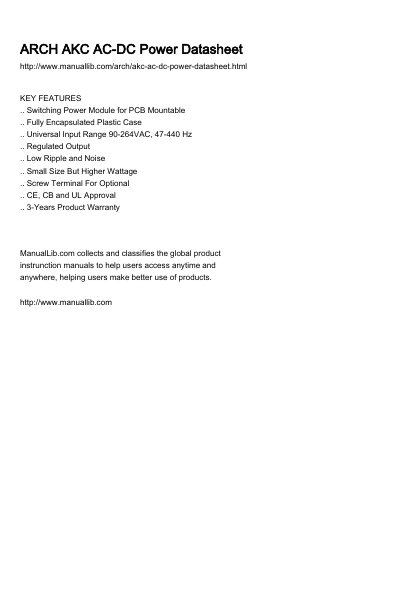

KEY FEATURES .. Switching Power Module for PCB Mountable .. Fully Encapsulated Plastic Case .. Universal Input Range 90-264VAC, 47-440 Hz .. Regulated Output .. Low Ripple and Noise .. Small Size But Higher Wattage .. Screw Terminal For Optional .. CE, CB and UL Approval .. 3-Years Product Warranty
This document is a technical datasheet for the ARCH AKC Series AC-DC Power Modules. These are PCB mountable switching power modules available in single, dual, and triple output configurations with a maximum output wattage of 20W per module.
The datasheet details electrical specifications including universal input ranges (90-264VAC), regulated DC outputs ranging from 3.3V to 24V, and various protection features such as over-current and short-circuit protection. It also provides mechanical dimensions, pin configurations for both standard and screw terminal versions, and environmental operating limits.
| Max output wattage | 20W |
|---|---|
| Input Voltage Range (AC) | 90-264VAC, 47-440 Hz |
| Operating Temperature | -25°C…+70°C (with derating) |
| MTBF | >200,000 h @ 25°C |
| Case Material Flammability | UL 94V-0 |
The modules support a universal input range of 90-264VAC at frequencies between 47-440 Hz.
The modules include over-current protection, short-circuit protection with hiccups mode recovery, and over-voltage protection.
The product comes with a 3-year warranty.
