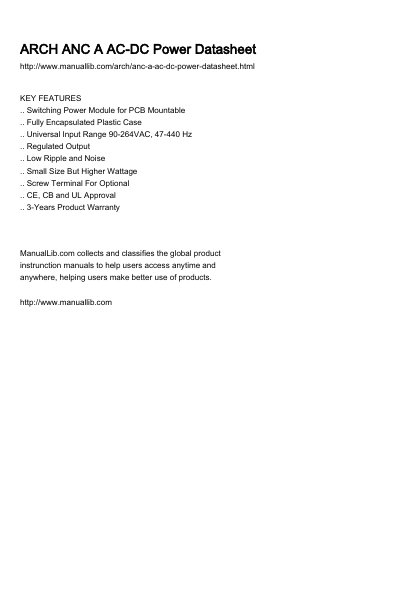

ARCH ANC A Series AC-DC Power Module Datasheet

KEY FEATURES .. Switching Power Module for PCB Mountable .. Fully Encapsulated Plastic Case .. Universal Input Range 90-264VAC, 47-440 Hz .. Regulated Output .. Low Ripple and Noise .. Small Size But Higher Wattage .. Screw Terminal For Optional .. CE, CB and UL Approval .. 3-Years Product Warranty

Brand: ARCH
Category: AC-DC Power
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 346 KB
Published: 03 March, 2014
Updated: 25 September, 2023
MD5 checksum: 2DFF28A029B31EB2E07EA521B17E047B
PDF: ARCH ANC A Series AC-DC Power Module Datasheet PDF

About this manual

This document is a technical datasheet for the ARCH ANC A Series of AC-DC power modules. These are fully encapsulated plastic case switching power modules designed for PCB mounting, offering universal input ranges from 90-264VAC or 120-370VDC.

What's inside

Key Features
Electrical Specifications (Single Output)
Electrical Specifications (Dual/Triple Output)
Mechanical Dimensions
Block Diagram
Screw Terminal Pinout

Specifications

Max Output Wattage	15W
Input Voltage Range	90-264 VAC or 120-370 VDC
Operating Temperature	-25°C…+70°C (with derating)
Dimensions	74.0 x 54.0 x 22.0 mm
Safety Approvals	UL/cUL, CE
