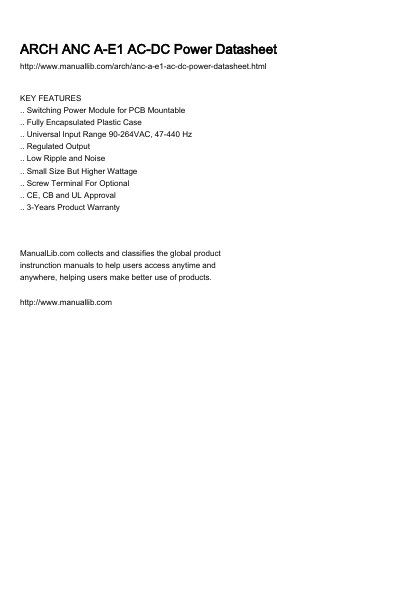

KEY FEATURES .. Switching Power Module for PCB Mountable .. Fully Encapsulated Plastic Case .. Universal Input Range 90-264VAC, 47-440 Hz .. Regulated Output .. Low Ripple and Noise .. Small Size But Higher Wattage .. Screw Terminal For Optional .. CE, CB and UL Approval .. 3-Years Product Warranty
This datasheet details the ARCH ANC A-E1 series of AC-DC power modules, available in 5 Watt and 15 Watt versions with single, dual, or triple output options. The modules feature a fully encapsulated plastic case suitable for PCB mounting and offer a universal input range of 90-264VAC or 120-370VDC.
| Max Output Wattage | 5W or 15W |
|---|---|
| Input Voltage Range | 90-264 VAC or 120-370 VDC |
| Input Frequency | 47-440 Hz |
| Operating Temperature | -40°C...+70°C |
| Storage Temperature | -40°C...+85°C |
| Switching Frequency | 100 kHz |
| Dimensions (L x W x H) | 74.0 x 54.0 x 22.0 mm |
| Weight | 114g |
| Safety Approvals | UL/cUL, CE |
The modules accept a universal input range of 90-264VAC or 120-370VDC.
The datasheet covers models with a maximum output wattage of 5W and 15W.
The modules include Over Power Protection, Over Voltage Protection, and Short Circuit Protection.
