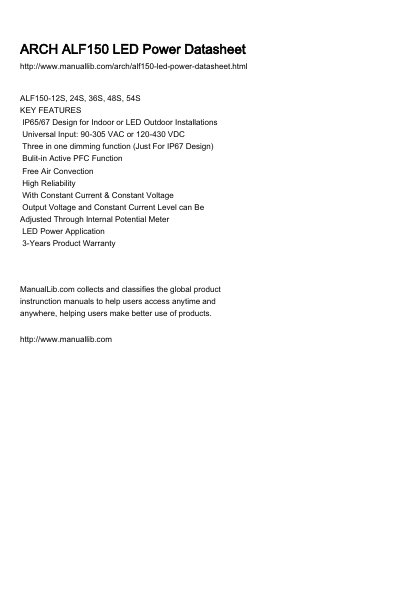

ARCH ALF150 Series LED Power Datasheet

This datasheet provides detailed information about ARCH ALF150 LED Power, including input and output parameters, power, etc.

Brand: ARCH
Category: LED Power
Document type: Datasheet
Language: English
Pages: 10
File format: PDF
File size: 443 KB
Published: 03 March, 2014
Updated: 30 September, 2023
MD5 checksum: 2175E219C273A5DCE6BF662E70F38847
PDF: ARCH ALF150 Series LED Power Datasheet PDF

About this manual

The ARCH ALF150 Series is a 150-watt LED power supply designed for both indoor and outdoor installations. It features a universal input range of 90-305 VAC or 120-430 VDC and includes a built-in active PFC function. The series offers IP65 and IP67 protection ratings, with the IP67 version supporting a three-in-one dimming function.

What's inside

Key Features
Electrical Specifications
Dimming Operation
Efficiency vs Load
Mechanical Dimension
Assembly Instructions
Protection Functions
Derating

Specifications

Max Output Wattage	150W
Input Voltage	90-305 VAC or 120-430 VDC
Protection Rating	IP65/67
Operating Temperature	-30°C…+70°C
MTBF	>75,000 h
Weight	750 g

Frequently asked questions

What is the input voltage range?

The unit supports a universal input of 90-305 VAC or 120-430 VDC.

Does the IP67 model support dimming?

Yes, the IP67 rated design includes a three-in-one dimming function.

What is the maximum output current for the ALF150-12S model?

The maximum output current is 12,500 mA (12.5 A).
