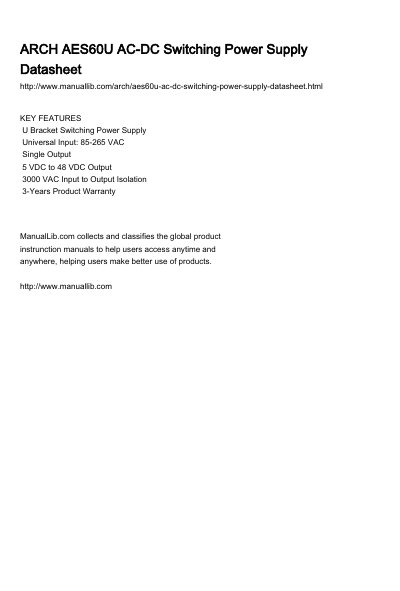

ARCH AES60U AC-DC Switching Power Supply Datasheet, This product is a 60W power supply, with an input range of 85-265VAC and an output range of 5V-48V, with 3000VAC input and output isolation, and a warranty period of 3 years.
This document is a datasheet for the ARCH AES60U series of U Bracket AC-DC switching power supplies. It lists key features such as universal input voltage (85-265 VAC), single output options ranging from 5V to 48V, and 3000VAC input-to-output isolation. The document includes a 3-year product warranty and specifies safety approvals including CE and UL60950.
| Input Voltage | 85-265 VAC or 100-370 VDC |
|---|---|
| Output Voltage Range | 5 VDC to 48 VDC |
| Max Output Wattage | 50W to 60W |
| Input to Output Isolation | 3000 VAC |
| Operating Temperature | -40°C...+70°C |
| Dimensions | 105.0 x 58.0 x 38.1 mm |
| Weight | 240g |
| Efficiency (at 230V) | 82% to 86% |
The product comes with a 3-year warranty.
The unit has CE and UL60950 safety approvals.
The maximum inrush current is 30 A.
