Start here

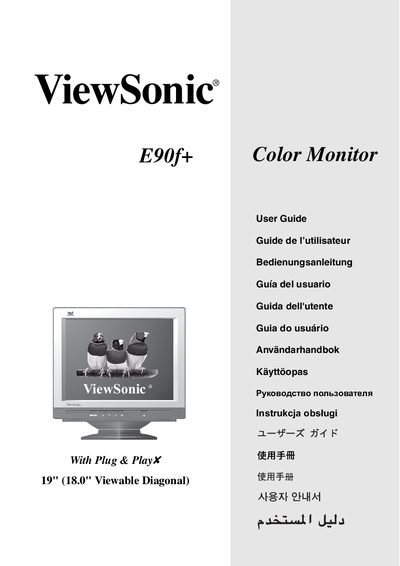

ViewSonic E90f+ Monitor User Manual
This manual covers the installation of the ViewSonic E90f+ monitor, including power connection, video cable hookup, and the installation of the ViewSonic Wizard driver and color‑profile files. It also explains how to configure display settings such as resolution, refresh rate, brightness modes and OSD functions.
Safety and regulatory information are included, with FCC and CE compliance notes, grounding requirements, and warnings about possible radio‑frequency interference. The guide also describes how to use the OnView control panel for menu navigation, color adjustment, and OSD lock/unlock. This manual is written in Japanese.
ViewSonic E90F specifications
| Screen size | 19" (18.0" viewable diagonal) |
|---|---|
| Native resolution | 1280 x 1024 @ 75 Hz |
| OSD lock function | Press [1] and [W] for 3 seconds |
All ViewSonic E90F documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can I change the display resolution?
Use the OSD menu to select the desired resolution; the native setting is 1280 × 1024 at 75 Hz.
How do I lock the OSD to prevent accidental changes?
Press the [1] and [W] keys together for about three seconds to enable OSD LOCK.
