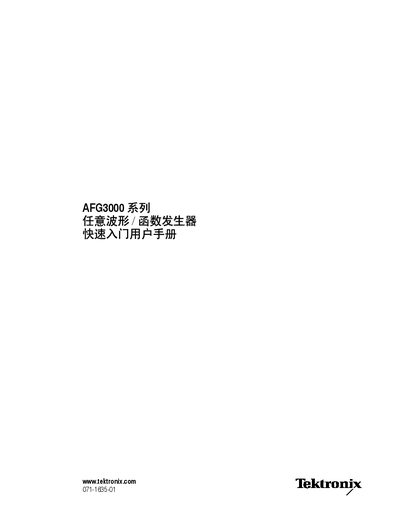

Quick start guide for the Tektronix AFG3000 series arbitrary waveform/function generator, covering safety, setup, basic operation, and specifications.
This Quick Start Guide introduces the Tektronix AFG3000 series arbitrary waveform/function generator. It provides safety rules, environmental considerations, and step‑by‑step instructions for powering on, self‑calibration, and basic operation of the instrument.
The guide walks the user through generating standard waveforms (sine, square, pulse), creating and editing arbitrary waveforms, using modulation and scanning modes, and connecting accessories. Technical specifications, front‑panel and rear‑panel overviews, and network/USB connectivity details are also included. This manual is written in Chinese.
| Frequency range (AFG3021/AFG3022) | 11 mHz – 25 MHz |
|---|---|
| Output amplitude range (AFG3021/AFG3022) | 410 mVp‑p to 10 Vp‑p |
| Power consumption | < 120 W |
The typical warm‑up time is at least 20 minutes.
The instrument operates from 0 °C to +50 °C and can be stored from –30 °C to +70 °C.
For the AFG3021/AFG3022 models the output can be set from 410 mVp‑p up to 10 Vp‑p.
