This manual provides quick start instructions, safety rules, and technical specifications for the Tektronix AFG3000 Series Arbitrary/Function Generator.

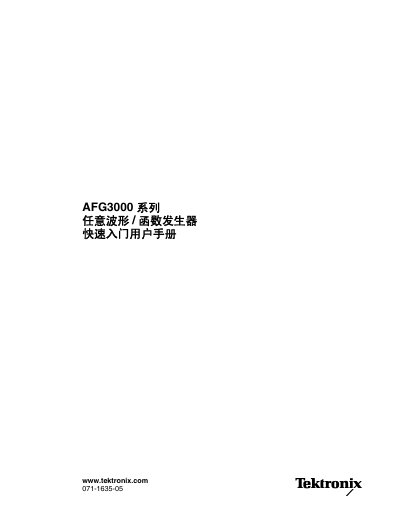

This document is the Quick Start User Manual for the Tektronix AFG3000 Series Arbitrary/Function Generator. It covers essential topics including safety rules, environmental considerations, basic operation, waveform generation, and instrument setup. The guide is designed to help users quickly become familiar with the instrument's features and capabilities. This manual is written in Chinese.
| Sampling Rate | 250 MS/s to 2 GS/s |
|---|---|
| Waveform Types | Sine, Square, Pulse, Ramp, Sawtooth, Sin(x)/x, Noise, DC, Gaussian, Lorentzian, Exponential Rise/Decay, Semi-Circular |
| Wavelength Range | 2 to 131,072 points |
| Sine Wave Frequency Range | 1 μHz to 25 MHz (AFG3021B/AFG3022B) |
| Square Wave Frequency Range | 1 μHz to 12.5 MHz (AFG3021B/AFG3022B) |
| Pulse Wave Frequency Range | 1 mHz to 12.5 MHz (AFG3021B/AFG3022B) |
| Arbitrary Waveform Frequency Range | 21 mHz to 12.5 MHz (AFG3021B/AFG3022B) |
The product is warranted against materials and workmanship defects for three (3) years from the date of original purchase from an authorized Tektronix distributor.
No, the instrument should not be operated in a humid environment to avoid potential damage or safety hazards.
