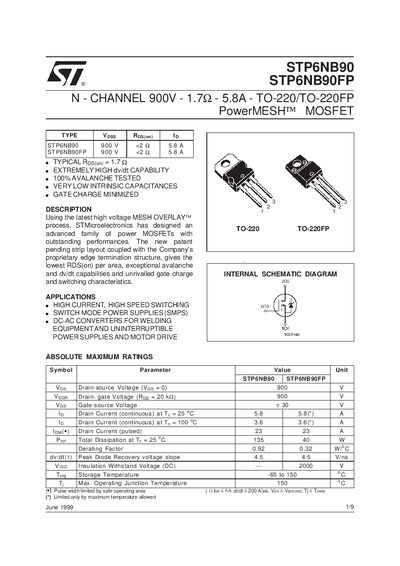

STMicroelectronics STP6NB90 / STP6NB90FP Power MOSFET Datasheet
The document provides detailed specifications for the STP6NB90 and STP6NB90FP N‑channel power MOSFETs, including electrical ratings, thermal performance, and mechanical dimensions. It highlights the devices' high voltage capability (900 V), low on‑resistance, and robust avalanche characteristics.
Key sections cover description, applications, absolute maximum ratings, thermal data, electrical and switching characteristics, mechanical data, and thermal impedance, along with legal and copyright information.
STMicroelectronics STP6NB90 specifications
| Drain‑source Voltage (VDS) max | 900 V |
|---|---|
| Gate‑source Voltage (VGS) max | 30 V |
| Continuous Drain Current @ 25 °C | 5.8 A |
| Continuous Drain Current @ 100 °C | 3.6 A |
| Pulsed Drain Current | 23 A |
| Total Dissipation @ 25 °C | 135 W |
| Typical On‑Resistance (RDS(on)) | 1.7 mΩ |
| Thermal Resistance Junction‑case | 1.08 °C/W |
| Thermal Resistance Junction‑ambient | 62.5 °C/W |
| Avalanche Current (repetitive) | 5.8 A |
| Single‑Pulse Avalanche Energy | 250 mJ |
| Maximum Operating Junction Temperature | 150 °C |
