ST NAND128-A NAND256-A NAND512-A NAND01G-A 128 Mbit 256 Mbit 512 Mbit 1 Gbit (x8/x16) 528 Byte/264 Word Page 1.8V/3V NAND Flash Memorieshandbook(1)
The NAND128‑A, NAND256‑A, NAND512‑A and NANDO1G‑A families are small‑page SLC NAND flash memories offered by STMicroelectronics. They provide densities from 128 Mbit up to 1 Gbit, support x8 or x16 bus widths, and operate from either 1.8 V or 3 V supply voltages.
Key features include 528‑Byte (512 + 16 spare) or 264‑Word (256 + 8 spare) page sizes, up to 100 000 program/erase cycles, 10‑year data retention, and a range of package options such as TSOP48, USOP48, VFBGA55, TFBGA55, VFBGA63 and TFBGA63.
STMicroelectronics NAND128-A specifications
| Density | 128 Mbit, 256 Mbit, 512 Mbit, 1 Gbit |
|---|---|
| Bus Width | x8 or x16 |
| Page Size | 528 Bytes (512 + 16 spare) for x8, 264 Words (256 + 8 spare) for x16 |
| Supply Voltage | 1.8 V (Vpp 1.7‑1.95 V) or 3.0 V (Vpp 2.7‑3.6 V) |
| Block Size | 16 KB + 512 B spare (x8) or 8 KB + 256 Words spare (x16) |
| Page Program Time | Typical 200 µs |
| Block Erase Time | Typical 2 ms |
| Endurance | 100 000 program/erase cycles |
| Data Retention | 10 years |
| RoHS Compliance | Lead‑free components |
All STMicroelectronics NAND128-A documents by type
Ratings, dimensions and ordering codes, for selection and design work.

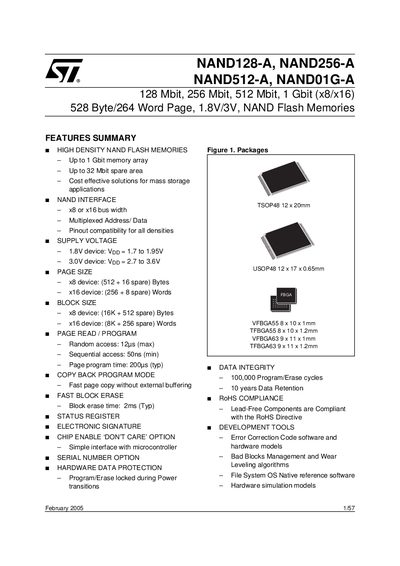

- ST NAND128-A NAND256-A NAND512-A NAND01G-A 128 Mbit 256 Mbit 512 Mbit 1 Gbit (x8/x16) 528 Byte/264 Word Page 1.8V/3V NAND Flash Memorieshandbook(1) 57 p
- ST NAND128-A NAND256-A NAND512-A NAND01G-A handbook(1) 57 p
- ST NAND128-A NAND256-A NAND512-A NAND01G-A handbook 57 p
- ST NAND128-A NAND256-A NAND512-A NAND01G-A 128 Mbit 256 Mbit 512 Mbit 1 Gbit (x8/x16) 528 Byte/264 Word Page 1.8V/3V NAND Flash Memorieshandbook 57 p
Questions answered in these manuals
What supply voltages are supported by the NAND flash devices?
The devices operate from either a 1.8 V supply (Vpp = 1.7‑1.95 V) or a 3.0 V supply (Vpp = 2.7‑3.6 V).
What is the page size for the x8 and x16 versions?
The x8 version has a 528‑Byte page (512 + 16 spare) and the x16 version has a 264‑Word page (256 + 8 spare).
What memory densities are available in the NAND flash family?
The family is offered in 128 Mbit, 256 Mbit, 512 Mbit and 1 Gbit densities.
From: ST NAND128-A NAND256-A NAND512-A NAND01G-A handbook(1)
Which supply voltages are supported by these NAND devices?
Both 1.8 V (Vpp = 1.7 V – 1.95 V) and 3.0 V (Vpp = 2.7 V – 3.6 V) devices are available.
From: ST NAND128-A NAND256-A NAND512-A NAND01G-A handbook(1)
What supply voltage options are available for the NAND128‑A family?
The devices can be powered at 1.8 V (Vpp = 1.7‑1.95 V) or 3.0 V (Vpp = 2.7‑3.6 V).
How many program/erase cycles can the NAND flash devices endure?
Each device is rated for up to 100 000 program/erase cycles.
