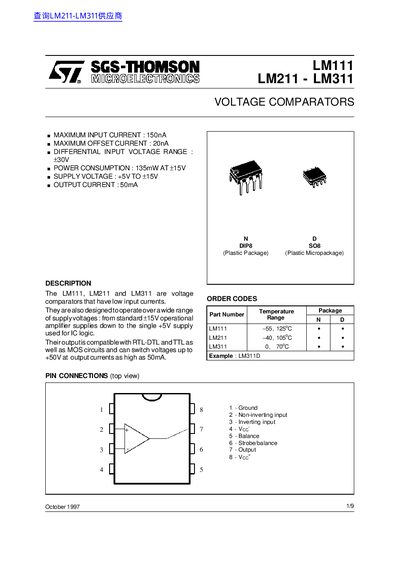

SGS-THOMSON LM111/LM211/LM311 Voltage Comparator Datasheet
This document provides comprehensive technical specifications for the LM111, LM211, and LM311 voltage comparators manufactured by SGS-THOMSON Microelectronics. These devices are designed to operate over a wide range of supply voltages, from standard operational amplifier supplies down to the single +5V supply used for IC logic. The output is compatible with RTL, DTL, TTL, and MOS circuits, capable of switching voltages up to +50V at output currents as high as 50mA.
Read onlineSTMicroelectronics LM311 specifications
| Maximum Input Current | 150nA |
|---|---|
| Maximum Offset Current | 20nA |
| Differential Input Voltage Range | +30V |
| Power Consumption | 135mW AT +15V |
| Supply Voltage Range | +5V TO +15V |
| Output Current | 50mA |
| Operating Temperature Range (LM111) | -55 to +125 °C |
| Operating Temperature Range (LM211) | -40 to +105 °C |
Source: SGS-THOMSON LM111/LM211/LM311 Voltage Comparator Datasheet
All STMicroelectronics LM311 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current for the LM111?
The maximum output current is 50mA.
From: SGS-THOMSON LM111/LM211/LM311 Voltage Comparator Datasheet
How much output current can the LM111 deliver?
The device provides an output current of up to 50 mA.
From: SGS-THOMSON LM111/LM211/LM311 Voltage Comparator Datasheet
What is the absolute maximum supply voltage for the LM311?
The LM311 can tolerate up to 36 V supply voltage.
From: STMicroelectronics LM111/LM211/LM311 Voltage Comparators Handbook
What is the typical output current capability of these comparators?
They can source or sink up to 50 mA at the output.
From: STMicroelectronics LM111/LM211/LM311 Voltage Comparators Handbook
