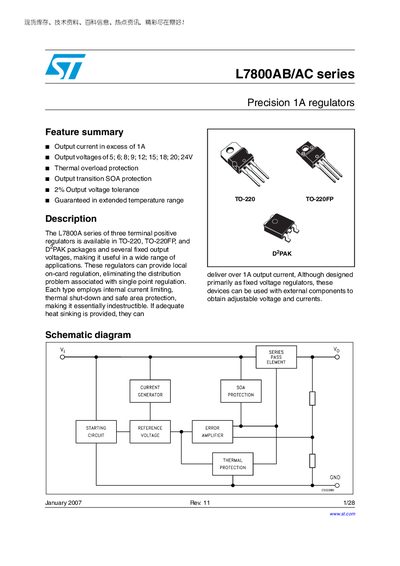

The L7800A series of three-terminal positive regulators is available in TO-220 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications.
The L7800AB/AC series are three‑terminal positive regulators offered in TO‑220, TO‑220FP and D²PAK packages. They provide output currents in excess of 1 A with fixed output voltages ranging from 5 V to 24 V and include thermal overload, SOA and short‑circuit protection.
The document contains pin configurations, maximum ratings, electrical characteristics, test circuits, mechanical data and ordering information, along with revision history and legal notices.
