BTA12 B/C series triacs are high performance glass passivated PNPN devices, suitable for general purpose applications where high surge current capability is required. For example, phase control and static switching on inductive or resistive load.

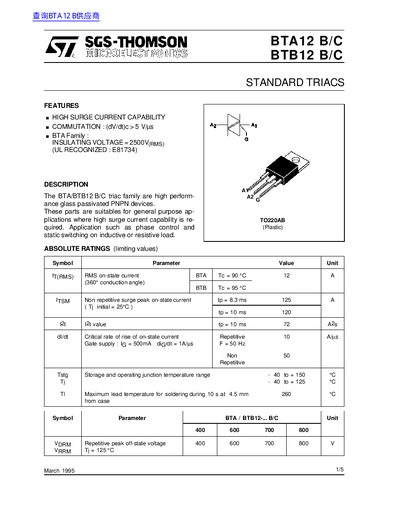

This document provides technical specifications for the BTA12 B/C and BTB12 B/C standard triac family. These high-performance glass passivated PNPN devices are designed for general-purpose applications requiring high surge current capability, such as phase control and static switching on inductive or resistive loads. The parts are UL recognized (E81734) and available in insulated (BTA) and uninsulated (BTB) TO220AB plastic packages.
| Insulating voltage | 2500V |
|---|---|
| Storage and operating junction temperature range | - 40 to+ 150 °c |
| Package type | TO220AB |
| Weight | 2.3 g |
The critical rate of rise of on-state current is 10 A/us.
The maximum gate trigger current is 50 mA.
