Start here

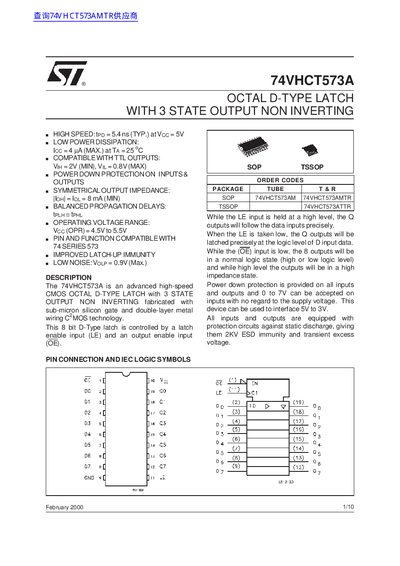

STMicroelectronics 74VHCT573A Octal D-Type Latch Data Sheet
The document describes the 74VHCT573A, an advanced high-speed CMOS octal D-type latch featuring non-inverting 3-state outputs. Fabricated using sub-micron silicon gate and double-layer metal wiring CMOS technology, this device is compatible with TTL outputs and offers powerdown protection on inputs and outputs.
Read onlineSTMicroelectronics 74VHCT573A specifications
| Propagation Delay (Typical) | 5.4 ns |
|---|---|
| Low Power Dissipation (Max) | 4 mW |
| Operating Voltage Range | 4.5V to 5.5V |
| ESD Immunity | 2KV |
Source: STMicroelectronics 74VHCT573A Octal D-Type Latch Data Sheet
All STMicroelectronics 74VHCT573A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the device compatible with TTL outputs?
Yes, it is compatible with TTL outputs.
From: STMicroelectronics 74VHCT573A Octal D-Type Latch Data Sheet
Does the device have powerdown protection?
Yes, powerdown protection is provided on all inputs and outputs.
From: STMicroelectronics 74VHCT573A Octal D-Type Latch Data Sheet
What is the operating voltage range?
The device operates with a supply voltage between 4.5V and 5.5V.
From: STMicroelectronics 74VHCT573A Octal D-Type Latch with 3-State Outputs Non-Inverting Datasheet
Is the device compatible with TTL outputs?
Yes, it is compatible with TTL outputs with a minimum input voltage of 2V.
From: STMicroelectronics 74VHCT573A Octal D-Type Latch with 3-State Outputs Non-Inverting Datasheet
