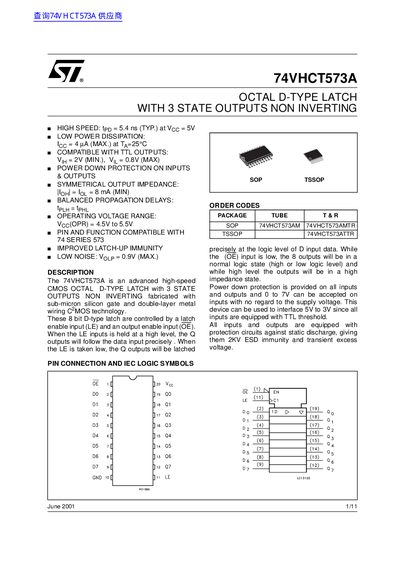

74VHCT573A is an advanced high-speed CMOS OCTAL D-TYPE LATCH with 3 STATE OUTPUTS NON INVERTING fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.
The 74VHCT573A is an advanced high-speed CMOS octal D-type latch with 3-state outputs, fabricated using sub-micron silicon gate technology. It features TTL-compatible inputs allowing interfacing between 5V and 3V logic systems, along with power-down protection on all inputs and outputs.
| Operating Voltage Range | 4.5V to 5.5V |
|---|---|
| Propagation Delay (Typical) | 5.4 ns |
| Low Power Dissipation (Max) | 4 mW |
| Input Voltage High Level (Min) | 2V |
| Operating Temperature Range | -55 to +125 °C |
The device operates with a supply voltage between 4.5V and 5.5V.
Yes, it is compatible with TTL outputs with a minimum input voltage of 2V.
Yes, power-down protection is provided on all inputs and outputs.
