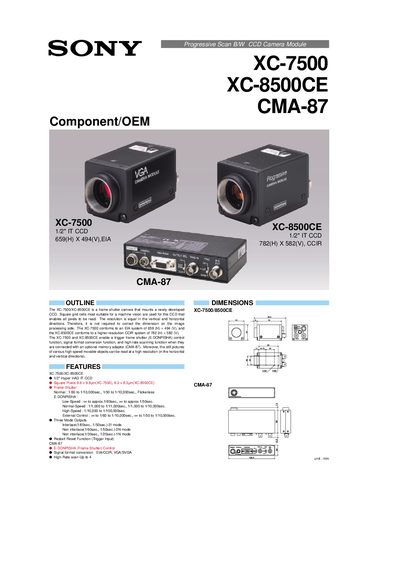

Sony XC-7500 / XC-8500CE CMA-87 User Manual
This manual describes the XC-7500 and XC-8500CE frame‑shutter cameras that use a 1/2‑inch IT CCD. It outlines the camera’s resolution, trigger functions, high‑rate scanning, and optional CMA‑87 memory adaptor. The document also lists the physical dimensions, power requirements, and environmental limits.
Detailed sections cover connections (C‑mount lens, video and trigger cables), shutter speed modes (low, normal, high, external control), video output formats (VGA, SVGA, EIA, CCIR), and specifications such as picture elements, cell size, and synchronization options.
SONY XC7500 specifications
| Optical size | 1/2-inch format (6.4 x 4.8 mm) |
|---|---|
| Picture elements (XC-7500) | 659 (H) × 494 (V) |
| Picture elements (XC-8500CE) | 782 (H) × 582 (V) |
| Cell size (XC-7500) | 9.9 µm × 9.9 µm |
| Signal systems | EIA/NVGA, CCIR/SVGA |
| Lens mount | C‑mount |
| Horizontal frequency | 15.734 kHz (XC‑7500) / 15.625 kHz (XC‑8500CE) |
| Vertical frequency | 59.94 Hz (XC‑7500) / 50 Hz (XC‑8500CE) |
| Power supply | DC 10.5 V – 15 V, 2.5 W |
| Dimensions / Weight | 44 × 44 × 70 mm / 190 g |
| Operating temperature / humidity | -5 °C – 45 °C / 25 % – 80 % RH |
| Storage temperature / humidity | -25 °C – 60 °C / 20 % – 90 % RH |
| Vibration resistance | 7 G (11 – 200 Hz) in 3 directions |
| Shock resistance | 70 G |
| MTBF | 83,400 hours |
All SONY XC7500 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What video output resolutions does the camera support?
It can output VGA (646 × 485), SVGA (767 × 575), EIA (646 × 485) and CCIR (767 × 575) formats depending on the selected signal system.
What are the power supply requirements?
The unit requires a DC supply of 10.5 V to 15 V and consumes about 2.5 W.
