Start here

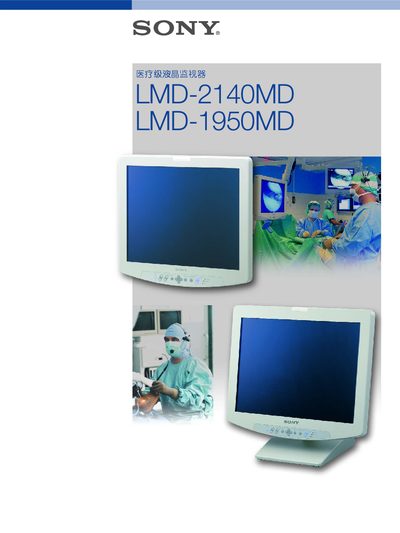

Sony LMD-2140MD and LMD-1950MD Medical LCD Monitor User Manual
The LMD-2140MD (21.1‑inch) and LMD-1950MD (19.1‑inch) are Sony's medical‑grade LCD monitors designed for surgical rooms and other professional healthcare environments. They meet UL60601‑1, CSA C22.2‑60601 and EN 60601‑1 safety standards and offer high brightness, contrast and color depth for endoscopic and imaging applications.
This manual covers product features, technical specifications, VESA mounting, input/output connectors, control panel functions, power requirements, optional accessories and recommended operating conditions. It also explains how to store user settings, adjust image parameters, and use the remote control interfaces. This manual is written in Chinese.
SONY LMD-1950MD specifications
| Screen size | 21.1 in (LMD-2140MD), 19.1 in (LMD-1950MD) |
|---|---|
| Resolution | 1024 × 768 (LMD-2140MD), 1280 × 1024 (LMD-1950MD) |
| Maximum power consumption | ≈66 W (LMD-2140MD with 2×BKM‑229X), ≈100 W (LMD-1950MD with 2×BKM‑229X) |
| Power supply | DC 24 V 2.8 A, AC 100‑240 V ±10 % 50/60 Hz |
| Operating temperature | 0 °C to 40 °C |
| Dimensions (W × H × D) | 442 × 403 × 118 mm (LMD-2140MD), 505 × 444 × 119 mm (LMD-1950MD) |
| Weight | 9.7 kg (LMD-2140MD), 9.8 kg with two BKM‑229X adapters |
Source: Sony LMD-2140MD and LMD-1950MD Medical LCD Monitor User Manual
All SONY LMD-1950MD documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What screen resolutions are supported by the LMD-2140MD and LMD-1950MD monitors?
The LMD-2140MD supports a resolution of 1024 × 768 (XGA), while the LMD-1950MD supports 1280 × 1024 (SXGA).
From: Sony LMD-2140MD and LMD-1950MD Medical LCD Monitor User Manual
Which medical safety standards do these monitors meet?
Both monitors comply with UL60601‑1, CSA C22.2‑60601 and EN 60601‑1 safety standards for medical equipment.
From: Sony LMD-2140MD and LMD-1950MD Medical LCD Monitor User Manual
