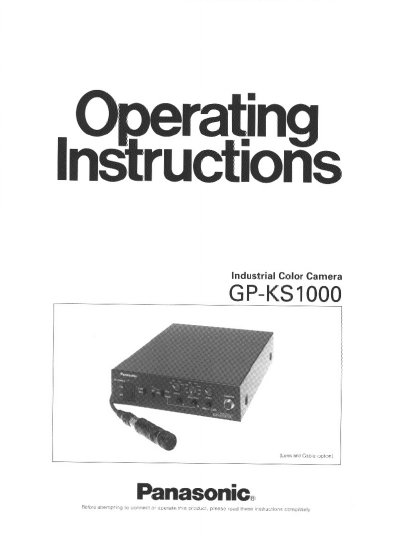

Panasonic GP-KS1000 Industrial Digital Signal Processing Color Camera Operation Instruction

Brand: Panasonic
Document type: User Manual
Language: English
Pages: 14
File format: PDF
File size: 688 KB
Published: 08 August, 2012
Updated: 21 August, 2012
Model: KS1
MD5 checksum: FD32AB438DC3BB81CE76F4172CEBC811
PDF: Panasonic GP-KS1000 Industrial Digital Signal Processing Color Camera Operation Instruction PDF

About this manual

This manual provides operating instructions for the Panasonic GP-KS1000 Series Standard Configuration, which consists of a Camera Head and a Camera Control Unit. The device is designed to overcome space limitations in video applications with a weight of only 18 g and a compact size.

What's inside

Preface
Features
Precautions
System Block Diagram
Major Operating Controls
Camera Control Unit Functions
User File Setting
Specifications

Specifications

Weight	18 g (0.04 lbs)
Horizontal Resolution	560 lines
Signal-to-Noise Ratio	54 dB
Sensor Type	1/2 inch Interline Transfer CCD
Pixel Dimensions	830 (H) x 970(V)

Frequently asked questions

What is the maximum cable length between the camera head and control unit?

The maximum cable length is 10 meters (33 feet) when using an optional camera cable.

What power supply is required for this camera?

The camera must be connected to a DC 12V, Class 2 Power supply only.

What are the fixed electronic shutter speeds available?

The camera offers seven fixed electronic shutter speeds ranging from 1/100 to 1/8000.
