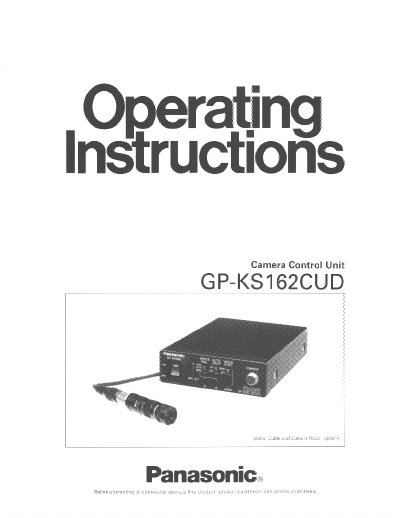

This manual provides instructions for the Panasonic GP-KS162CU Camera Control Unit, designed to work with the optional GP-KS162H camera head. The system is a compact CCTV solution featuring a 1/2-inch Interline CCD image sensor with 480 lines of horizontal resolution and a minimum scene illumination of 0.3 footcandle.
| Image Sensor | 1/2 inch Interline CCD |
|---|---|
| Resolution | 768 (H) x 492 (V) pixels |
| Horizontal Resolution | 480 lines |
| Minimum Scene Illumination | 0.3 footcandle (3 lux) |
| Signal-to-Noise Ratio | 50 dB |
| Operating Voltage | DC 12V |
| Maximum Cable Length | 33 feet (10 meters) |
| Video Output | S-VHS |
The maximum cable length is 33 feet (10 meters) when using an optional camera cable.
The unit requires a DC 12V, 0.5 A - 0.7 A Class 2 Power supply.
Yes, the R and B gain of the white balance can be adjusted manually using the R and B Gain Controls.
