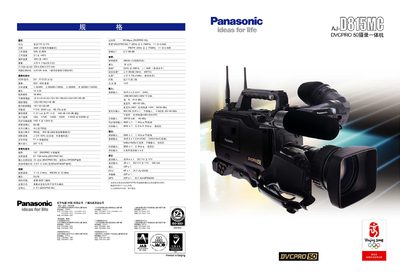

The Panasonic AJ-D815MC is a DVCPRO 50 camcorder equipped with a 2/3‑inch 600,000‑pixel 3‑CCD sensor and a high‑sensitivity F1.4 lens. It offers advanced functions such as digital super‑gain up to +68 dB, 12‑bit signal processing, and dual‑channel 48 kHz 16‑bit audio recording. The manual explains how to use the camera's various modes, menu settings, and accessories, including optional GPS and wireless microphone modules.
Key operational features include customizable user presets stored on the internal memory or SD cards, automatic white‑balance tracking, digital zoom, and a range of optical ND filters. Power management options such as low‑power and battery‑saving modes extend recording time to up to 120 minutes. The document also details connection interfaces, remote control options, and recommended accessories for professional news and documentary use. This manual is written in Chinese.
| Image Sensor | 2/3 inch 600,000‑pixel 3‑CCD |
|---|---|
| Lens | F1.4, 13 mm focal length |
| Super Gain (Maximum) | +68 dB |
| Bit Depth | 12‑bit |
| Audio Sample Rate | 48 kHz, 16‑bit |
| Signal‑to‑Noise Ratio | 62 dB |
| Weight (Full) | 5.1 kg |
| Weight (Body Only) | 4.1 kg |
| Recording Time (Continuous) | Up to 120 minutes |
| User Presets | 8 presets (stored on SD or Multi‑Media card) |
The camcorder provides a maximum digital super gain of +68 dB.
Up to eight user preset files can be saved to the internal memory or an SD/Multi‑Media card.
The unit offers XLR and 1/4" inputs for microphones, line‑level inputs, and a selectable 48 kHz 16‑bit digital audio channel.
