IDT IDT238 handbook

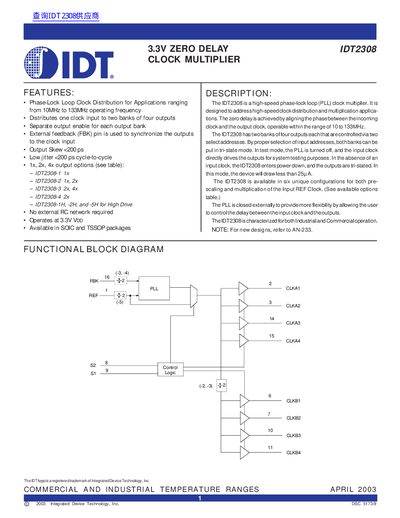

Datasheet 13 pages · 143 KB · EN
The IDT2308 is a high-speed phase-lock loop (PLL) clock multiplier designed for high-speed clock distribution and multiplication applications. It operates within a frequency range of 10 to 133MHz and provides two banks of four outputs each, controlled via select addresses. The device achieves zero delay by aligning the phase between the incoming clock and the output clock.
Read onlineIDT IDT2308 specifications
| Operating Frequency Range | 10MHz to 133MHz |
|---|---|
| Supply Voltage | 3.3V |
| Output Skew | <200 ps |
| Jitter (Cycle-to-Cycle) | <200 ps |
| Power Down Current | <25 µA |
Source: IDT IDT238 handbook
All IDT IDT2308 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available output options for the IDT2308?
The device offers 1x, 2x, and 4x output options depending on the specific configuration selected.
From: IDT IDT238 handbook
Does the IDT2308 require an external RC network?
No, the device does not require an external RC network.
From: IDT IDT238 handbook
What is the supply voltage range for the IDT2308A?
The device can be powered with a supply voltage from –0.5 V up to +4.6 V.
