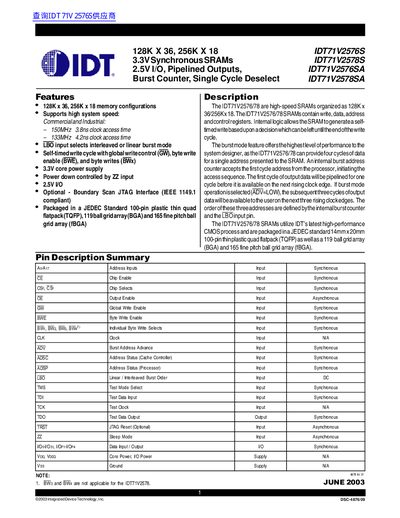

IDT IDT71V2576S 128K x 36 Synchronous SRAM Datasheet
This document is a technical datasheet for the IDT71V2576/78 series of high-speed Synchronous Static RAMs (SRAMs). These devices are organized as 128K x 36 or 256K x 18 and feature pipelined outputs, a burst counter, and single cycle deselect functionality. They operate with a 3.3V core power supply and 2.5V I/O voltage.
Read onlineIDT 71V2576 specifications
| Memory Configuration | 128K x 36, 256K x 18 |
|---|---|
| Core Power Supply Voltage | 3.3V (Min: 3.135V, Max: 3.465V) |
| I/O Power Supply Voltage | 2.5V (Min: 2.375V, Max: 2.625V) |
| Maximum Operating Frequency | 150MHz (Commercial), 133MHz (Industrial) |
| Clock Access Time (Commercial) | 3.8ns at 150MHz |
| Package Types | TQFP, BGA (119 ball), BGA (165 fine pitch) |
Source: IDT IDT71V2576S 128K x 36 Synchronous SRAM Datasheet
All IDT 71V2576 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the memory configurations for this SRAM?
The device supports 128K x 36 and 256K x 18 memory configurations.
Does this SRAM support burst mode operation?
Yes, it supports high system speed with a Burst Counter and Single Cycle Deselect feature.
What memory sizes are offered by the IDT71V2576 and IDT71V2578?
The IDT71V2576 provides 128 K × 36 bits of memory, while the IDT71V2578 provides 256 K × 18 bits.
What supply voltages do these SRAMs require?
They use a 3.3 V core supply voltage and a 2.5 V I/O voltage.
