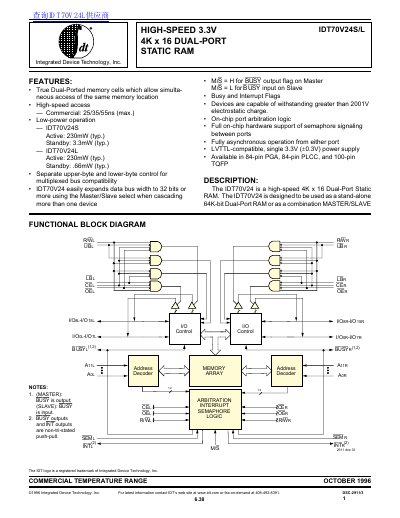

IDT IDT70V24S/L High-Speed 3.3V 4K x 16 Dual-Port Static RAM Datasheet
The IDT70V24S/L is a high-speed 4K x 16 Dual-Port Static RAM designed for commercial temperature range applications. It features true dual-ported memory cells that allow simultaneous access of the same memory location, enabling full-speed, error-free operation in 32-bit or wider memory systems without additional discrete logic. The device supports separate upper-byte and lower-byte control for multiplexed bus compatibility and can be cascaded to expand data bus width to 32 bits or more.
Read onlineIDT IDT70V24S specifications
| Memory Capacity | 4K x 16 |
|---|---|
| Supply Voltage | 3.3V (±0.3V) |
| Operating Temperature | 0 to +70 °C |
| Active Power (IDT70V24S) | 230mW (typ.) |
| Standby Power (IDT70V24S) | 3.3mW (typ.) |
| Access Time (Commercial) | 25/35/55ns (max.) |
| Package Types | 84-pin PGA, 84-pin PLCC, 100-pin TQFP |
Source: IDT IDT70V24S/L High-Speed 3.3V 4K x 16 Dual-Port Static RAM Datasheet
All IDT IDT70V24S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum access time for the IDT70V24S/L?
The maximum access time for the commercial temperature range is 55ns.
From: IDT IDT70V24S/L High-Speed 3.3V 4K x 16 Dual-Port Static RAM Datasheet
Can the IDT70V24S/L be used in 32-bit systems?
Yes, it can expand data bus width to 32 bits or more using Master/Slave select when cascading.
From: IDT IDT70V24S/L High-Speed 3.3V 4K x 16 Dual-Port Static RAM Datasheet
What is the typical active power consumption of the IDT70V24S/L?
The device typically consumes about 400 mW when active.
What package types are available for the IDT70V24S/L?
The RAM is offered in 84‑pin PGA, 84‑pin PLCC, and 100‑pin TQFP packages.
