Key facts
- Brand
- IDT
- Model
- IDT71V35761S
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-05
Start here

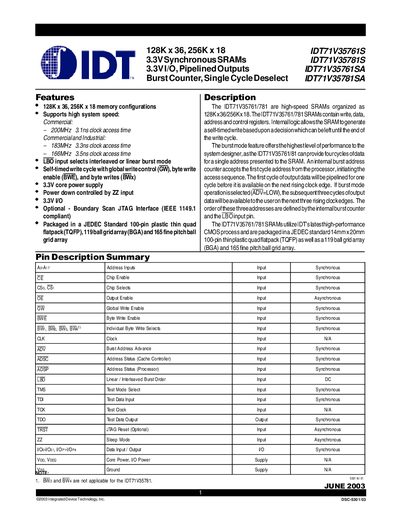

IDT IDT71V35761S IDT71V35781S IDT71V35761SA IDT71V35781SA handbook
This document describes the IDT71V35761 and IDT71V35781, which are 3.3V Synchronous SRAMs organized as 128K x 36 or 256K x 18. These devices feature pipelined outputs, a burst counter for high system speed, and support both commercial and industrial temperature ranges.
Read onlineIDT IDT71V35761S specifications
| Memory Organization | 128K x 36, 256K x 18 |
|---|---|
| Operating Voltage (Core) | 3.3V ±5% |
| Commercial Temperature Range | 0°C to +70°C |
| Industrial Temperature Range | -40°C to +85°C |
| Max Clock Access Time (Commercial) | 3.1ns |
Source: IDT IDT71V35761S IDT71V35781S IDT71V35761SA IDT71V35781SA handbook
All IDT IDT71V35761S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the memory configurations for these SRAMs?
The devices come in two specific memory configurations: 128K x 36 and 256K x 18.
From: IDT IDT71V35761S IDT71V35781S IDT71V35761SA IDT71V35781SA handbook
What is the maximum clock access time for commercial grade parts?
Commercial grade SRAMs have a maximum clock access time of 3.1ns.
From: IDT IDT71V35761S IDT71V35781S IDT71V35761SA IDT71V35781SA handbook
What memory configurations are available for the IDT 71V35761S?
The device is offered in 128K × 36 and 256K × 18 SRAM configurations.
From: IDT 71V35761S Data Sheet
What is the core supply voltage range?
The core supply voltage (Vpp) operates between 3.135 V and 3.465 V.
From: IDT 71V35761S Data Sheet
