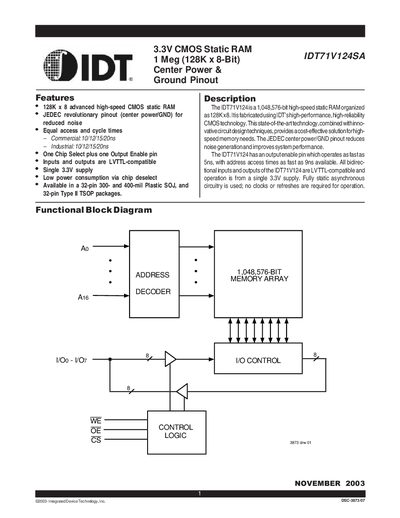

IDT IDT71V124SA 3.3V CMOS Static RAM Datasheet
The IDT71V124SA is a 1,048,576-bit high-speed static RAM organized as 128Kx8, fabricated using IDT’s high-performance CMOS technology. It operates from a single 3.3V supply and features LVTTL-compatible inputs and outputs. The JEDEC center power/GND pinout reduces noise and improves system performance. Available in commercial and industrial temperature ranges with access times from 10ns to 20ns.
Read onlineIDT 71V124 specifications
| Memory Size | 1 Meg (128K x 8-Bit) |
|---|---|
| Supply Voltage | 3.3V |
| Access Times | Commercial: 10/12/15/20ns, Industrial: 10/12/15/20ns |
| Package Types | 32-pin Type II TSOP, 300- and 400-mil Plastic SOJ |
All IDT 71V124 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage for the IDT71V124SA?
The device operates from a single 3.3V supply.
What are the access times for the IDT71V124SA?
Access times are 10ns, 12ns, 15ns, or 20ns depending on the speed grade and temperature range.
What is the temperature range for the commercial grade of the IDT71V124?
The commercial grade operates from 0 °C to +70 °C.
From: IDT IDT71V124 3.3V CMOS Static RAM 1 Meg (128K x 8-Bit) Revolutionary Pinout
What package type is the IDT71V124 available in?
It is packaged in a 32‑pin 400‑mil Plastic SOJ.
From: IDT IDT71V124 3.3V CMOS Static RAM 1 Meg (128K x 8-Bit) Revolutionary Pinout
