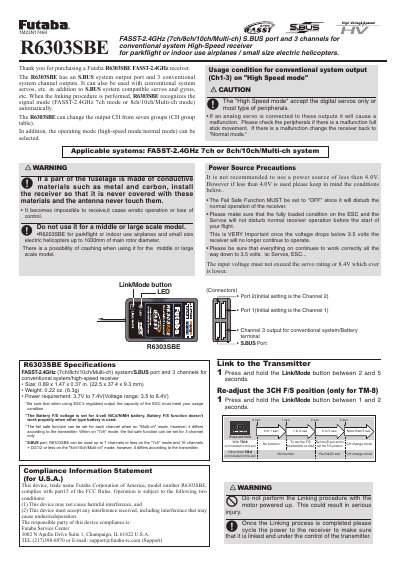

Futaba R6303SBE Receiver User Manual
This manual provides instructions for the Futaba R6303SBE, a high-speed receiver designed for parkflight or indoor use airplanes and small size electric helicopters. It features an S.BUS system output port and three conventional system channel outputs, compatible with both S.BUS and conventional servos and gyros.
Read onlineFutaba R6303SB specifications
| Size | 0.89 x 1.47 x 0.37 in. (22.5 x 37.4 x 9.3 mm) |
|---|---|
| Weight | 0.22 oz. (6.3g) |
| Power requirement | 3.7V to 7.4V |
| Voltage range | 3.5 to 8.4V |
All Futaba R6303SB documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum main rotor diameter for the R6303SBE?
The receiver is intended for parkflight or indoor use airplanes and small size electric helicopters up to 1000mm of main rotor diameter.
Can the R6303SBE be used with analog servos in High Speed mode?
No, the High Speed mode accepts digital servos only; using an analog servo will cause a malfunction.
How do I switch between Normal and High Speed modes?
Turn off the receiver, press and hold the Link/Mode button while turning it on for more than 1 second, then release.
What does a solid red LED indicate?
A solid red LED indicates that the receiver is in Normal mode.
