Key facts
- Brand
- Futaba
- Model
- SKYSPORT 6
- Category
- Other Electronics
- Industry
- Industrial
- Documents
- 4
- Languages
- JA · EN
- Last added
- 2012-08-09
Start here

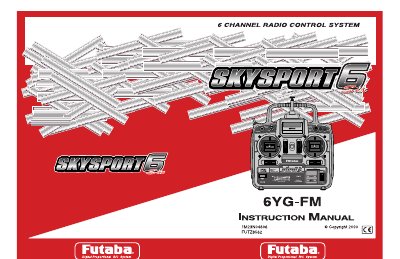

Futaba SKYSPORT6 6YG-FM Manual
This manual covers the safe use and operation of the Futaba 6YG R/C transmitter. It includes important safety information regarding flight conditions, battery handling, and storage to prevent injury or equipment failure. The guide details the set contents and explains the function of each part on the transmitter's front panel. This manual is written in Japanese.
Read onlineFutaba SKYSPORT 6 specifications
| Operating system | Two-stick, 6 channels, w/helicopter function |
|---|---|
| Transmitting frequency | 35, 36, 40, 41, 50 or 72MHz band |
| Modulation | FM (Frequency Modulation) |
| Transmitter Power requirement | 9.6V Nicd battery(NT-8iB) |
| Transmitter Current drain | 180mA |
| Receiver FP-R116FB Power requirement | 4.8V or 6V Nicd battery (shared with servos) |
| Servo Control system | Pulse width control |
| Servo Operating angle | One side 45 degree min. (including trim) |
| Servo Output torque | 3kg-cm / 420z-in |
| Servo Operating speed | 0.22 sec/60 degree |
| Gyro Power requirement | 4.8V |
| Gyro Weight | 102g /3.60z |
Source: Futaba SKYSPORT-6H FP-6VH Manual
All Futaba SKYSPORT 6 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the temperature limits for storing the R/C set?
Do not store the transmitter in places that are very hot (75°F [40C] or more) or very cold (18°F [-10C] or less).
What happens if the transmitter antenna comes off during use?
If the transmitter antenna comes off, control will be lost and the model will crash.
What safety precautions must be observed before flying the model?
Do not fly on rainy or windy days, at night, near other R/C fields within about 3km, or when tired, sick, or intoxicated.
What is the correct order for turning on and off the power switches?
Turn on the transmitter switch first, then the receiver; turn off the receiver first, then the transmitter.
What is the intended application of this product?
This product is not intended for use in any application other than for the control of models for hobby and recreational purposes.
What safety precaution should be observed when powering up the system?
When powering up the system, first turn on the transmitter power, then turn on receiver power.
