Key facts
- Brand
- Futaba
- Model
- FP-7UAF
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-09
Start here

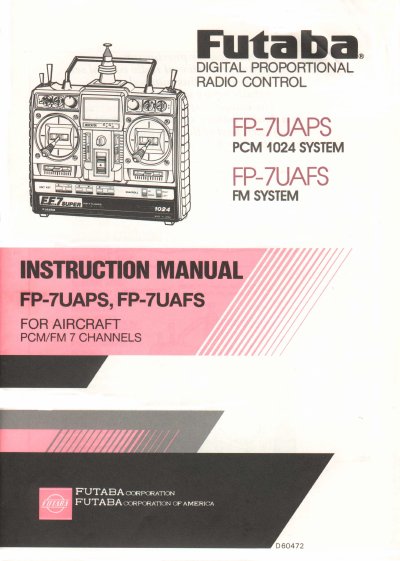

Futaba FP-7UAPS/FP-7UAFS Instruction Manual
User Manual 53 pages · 6.2 MB · EN
This manual covers the Futaba FP-7UAPS (PCM 1024 system) and FP-7UAFS (FM system) 7-channel digital proportional radio control sets designed for aircraft. It details the set contents, battery charging procedures, and installation precautions for the transmitter, receiver, and servos.
Read onlineFutaba FP-7UAF specifications
| Channels | 7 channels |
|---|---|
| Modulation | FM-PCM/PPM Selectable |
| Power requirement (Transmitter) | 9.6V Nicd battery pack |
| Current drain (Transmitter) | 200mA |
| Receiving range (Ground) | 500m |
| Receiving range (Air) | 1000m |
| Operating angle (Servo) | Rotary system, one side 45° or greater |
All Futaba FP-7UAF documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the factory setting for the FP-7UAPS modulation system?
The factory setting for the FP-7UAPS is PCM mode.
What is the factory setting for the FP-7UAFS modulation system?
The factory setting for the FP-7UAFS is PPM mode.
How long does it take to charge the NiCd battery?
The charging time is 15 hours.
From: Futaba FP-7UAP/FP-7UAF Digital Proportional Radio Control User Manual
How many flights can a fully-charged transmitter battery last?
A fully-charged transmitter battery can be used for about 10 flights of 10 minutes each.
From: Futaba FP-7UAP/FP-7UAF Digital Proportional Radio Control User Manual
