Key facts
- Brand
- Futaba
- Model
- FP-5
- Industry
- Industrial
- Documents
- 7
- Languages
- EN
- Last added
- 2012-08-09
Start here

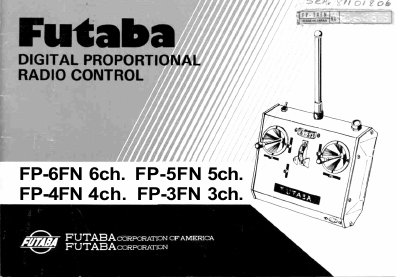

Futaba FP-6FN 6ch FP-5FN 5ch FP-4FN 4ch FP-3FN 3ch Manual
This manual covers the operation of the new Futaba Proportional Radio Control System Transmitters (FP-T6FN, FP-T5FN, FP-T4FN, FP-T3FN), which are designed to maximum performance even when used with other receivers and servos. Key features include adjustable throttle control positions, a neck hook band for easy handling, and an included training system for beginners.
Read onlineFutaba FP-5 specifications
| Channels | 5 channels |
|---|---|
| Modulation | FM-PCM/PPM selectable or AM |
| Frequency Band | 72, 80, 41, 40, 36, 35 or 29 MHz |
| Power Requirement (TX) | 9.6V Nicd battery pack or penlight battery x 8 |
| Receiver Current Drain | 75 mA to 22 mA depending on model |
Source: Futaba FP-5UAP/FP-5UAF/FP-5UA Digital Proportional Radio Control Instruction Manual
All Futaba FP-5 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Futaba FP-5UAP/FP-5UAF/FP-5UA Digital Proportional Radio Control Instruction Manual 9 p
- Futaba FP-5NLP Digital Proportional Radio Control Manual 6 p
- Futaba FP-6NLK/FP-5NLK Digital Proportional Radio Control Manual 6 p
- Futaba FP-5NLH Helicopter Radio Control Manual 6 p
- Futaba FP-7FG 7ch FP-6FG 6ch FP-5FG 5ch Manual 19 p
- Futaba FP-6DN 6ch FP-5DN 5ch FP-4DN 4ch FP-5 5ch Manual 14 p
- Futaba FP-6FN 6ch FP-5FN 5ch FP-4FN 4ch FP-3FN 3ch Manual 20 p
Questions answered in these manuals
What is the charging time for the Nicad battery?
The charging time is 15 hours.
From: Futaba FP-5UAP/FP-5UAF/FP-5UA Digital Proportional Radio Control Instruction Manual
Is it legal to change crystals on 75 MHz bands in the U.S.A.?
No, it is illegal.
From: Futaba FP-5UAP/FP-5UAF/FP-5UA Digital Proportional Radio Control Instruction Manual
How do I change the frequency on the FP-5NLP?
The frequency can be changed within the same band by simply changing the crystal.
From: Futaba FP-5NLP Digital Proportional Radio Control Manual
How long do the NiCad batteries last?
The receiver battery can be used about 10 times at 10 minutes per flight between rechargings.
From: Futaba FP-5NLP Digital Proportional Radio Control Manual
What batteries are required for the transmitter?
The transmitter requires a 9.6V NiCd battery.
From: Futaba FP-6NLK/FP-5NLK Digital Proportional Radio Control Manual
What batteries are required for the receiver?
The receiver requires a 4.8V NiCd battery.
From: Futaba FP-6NLK/FP-5NLK Digital Proportional Radio Control Manual
