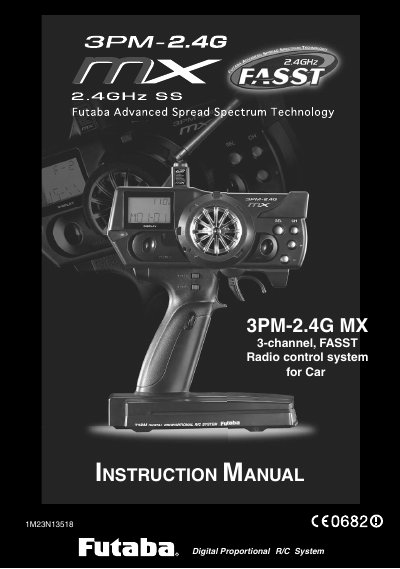

Futaba 3PM-2.4G MX Instruction Manual
The document is an instruction manual for the Futaba 3PM-2.4G MX, a 3-channel FASST radio control system designed for cars. It covers the R603FF/FS model number and details the use of Digital Proportional technology.
Key sections include safety precautions regarding operation in rain or near power lines, initial setup procedures for linking the transmitter and receiver, and configuration options such as PPM mode and HRS (High Rate System) fail-safe settings. The manual also explains how to adjust functions like steering speed, end points, and programmable mixing.
All Futaba 3PM documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power supply is required for the R603FF/FS in PPM/HRS mode?
The system requires a 6V NiCd battery.
What type of servo is compatible with the HRS mode?
A 6V type Futaba Digital Servo must be used.
What is the intended use of the Futaba 3PM?
The product may be used for models only and is not intended for any application other than controlling radio controlled models.
What safety precaution must be taken regarding the transmitter antenna?
You must extend the transmitter antenna to its full length before operating the model to ensure proper range.
What is the fail safe function?
It is a safety feature that moves servos to a preset position when reception fails.
What power supply is required for the R603FF in PPM or HRS mode?
The system must use a 6V NiCd battery when operating in either PPM or HRS mode.
