Start here

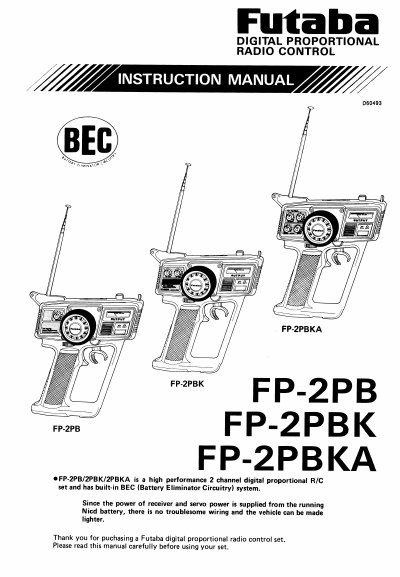

Futaba FP-2PB/FP-2PKB/FP-2PBKA Manual
This manual covers the Futaba FP-2PB, FP-2PBK, and FP-2PBKA digital proportional radio control sets. These high-performance pistol grip type AM 2-channel sets feature a built-in Battery Eliminator Circuitry (BEC) system, allowing the running NiCd battery to power both the receiver and servos, which simplifies wiring and reduces vehicle weight.
The document provides detailed instructions on transmitter features, including the mechanical Adjustable Throttle Limiter (ATL), throttle ATV trimmer, and steering rate adjuster. It also details receiver and servo specifications, installation procedures, and specific adjustments for electric motor cars and splined horns.
Futaba FP-2P specifications
| Operating system | Pistol grip type, 2-channel |
|---|---|
| Transmitting frequency | 27MHz band 72/75MHz band |
| Modulation system | AM (amplitude modulation) |
| Power requirement (Transmitter) | 12V, AA penlight battery x 8 |
| Receiving frequency (Receiver) | 75MHz |
| Intermediate frequency | 455kHz |
| Receiving range (FP-R102GR) | 550 yards (500m) |
| Output torque (FP-S148) | 42 oz. in. (3 kg-cm) |
| Output torque (FP-S129) | 48.7 oz-in (3.5kg-cm) |
| Operating speed (FP-S132H) | 0.13 sec/60° |
Source: Futaba FP-2PKA/FP-2PK Manual
All Futaba FP-2P documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can the steering servo travel volume be adjusted?
The steering servo travel volume can be adjusted simultaneously while running using the steering rate adjuster.
Can the throttle neutral position be set to different positions?
Yes, the throttle neutral position can be set to one of three positions by turning the throttle neutral adjuster with a coin.
What is the charging time for Nicd batteries?
The specified charging time is 15 hours.
From: Futaba FP-2PD/FP-2PDF Digital Proportional R/C Set User Manual
Can the receiver antenna be cut or folded?
No, you should never cut the antenna wire or fold it back on itself as this will shorten the receiving range.
From: Futaba FP-2PD/FP-2PDF Digital Proportional R/C Set User Manual
What is the function of the BEC system in this set?
The BEC (Battery Eliminator Circuitry) system allows the running NiCd battery to supply power to both the receiver and servo, eliminating the need for troublesome wiring and making the vehicle lighter.
Can the reverse stroke of the throttle trigger be adjusted?
Yes, the reverse (brake) stroke of the throttle trigger can be mechanically varied continuously using the Mechanical ATL (Adjustable Throttle Limiter) adjusting screws.
