Start here

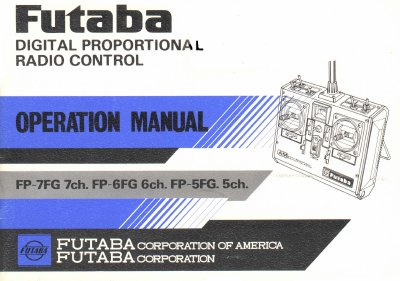

Futaba FP-7FG 7ch FP-6FG 6ch FP-5FG 5ch Manual
This manual covers the Futaba FP-5FG, FP-6FG, and FP-7FG digital proportional radio control sets. It details the features of the transmitter, including adjustable throttle limiter, dual-rate or exponential controls, and mixing capabilities for various aircraft models. The document also describes the FP-R7H receiver and FP-S28 servo specifications.
Read onlineFutaba FP-7FG specifications
| Operating frequencies | 27MHz band, 72MHz to 76MHz |
|---|---|
| Modulation system | AM (Amplified modulation) |
| Power requirement | 9.6V, Nicad battery (NT-8H) |
| Current drain | 150mA max. |
| Range | 550 yards (500m) on the ground, 1100 yards (1000m) in the air |
| Operating angle | One side 45 min. (including trim) |
All Futaba FP-7FG documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the FP-7FGH designed for?
The FP-7FGH was specially developed for model helicopters.
From: Futaba FP-7FGH Digital Proportional Radio Control User Manual
What is the operating angle for the servo?
The operating angle is one side 45° or more, including trim.
From: Futaba FP-7FGH Digital Proportional Radio Control User Manual
What are the features of the FP-T7FG transmitter?
The FP-T7FG includes aileron to rudder mixing, rudder from/to elevator mixing, and adjustable travel volume (ATV) for aileron, elevator, and rudder.
How does the trainer system work?
The trainer system allows a transmitter connected by the trainer cord (M-TC) to operate, and when the trainer switch is OFF, the user's own transmitter operates.
