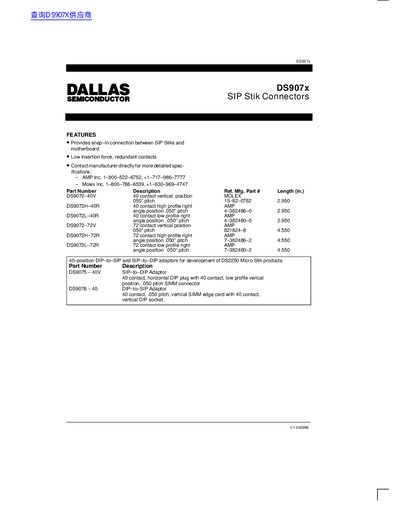

Dallas Semiconductor DS907x Series SIP Stik Connectors Product Data Sheet
The DS907x series offers snap-in connections between SIP Stiks and motherboards. These connectors feature low insertion force and redundant contacts to ensure reliable performance.
The product line includes various part numbers for different contact counts (40 or 72) and profiles, such as vertical positions, high profile right angle, and low profile right angle configurations.
Dallas Semiconductor DS907X specifications
| Pitch | .050 inch |
|---|---|
| Contact Count (DS9072) | 40 or 72 contacts |
| Connector Type | SIP Stik Connectors |
Source: Dallas Semiconductor DS907x Series SIP Stik Connector Product Information
