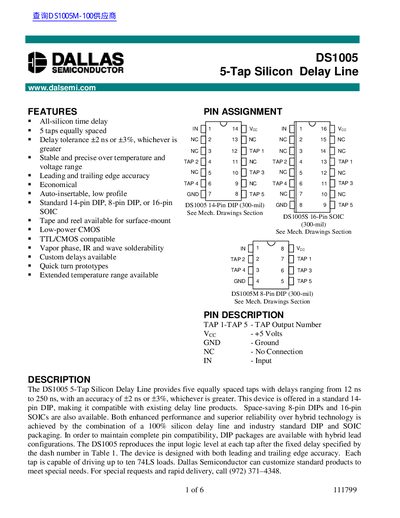

Dallas DS1005 5‑Tap Silicon Delay Line Datasheet
The DS1005 5‑Tap Silicon Delay Line from Dallas Semiconductor offers five equally spaced taps with selectable delays ranging from 12 ns to 250 ns. It is available in 14‑pin DIP, 8‑pin DIP, and 16‑pin SOIC packages and is TTL/CMOS compatible.
The document lists pin assignments, absolute maximum ratings, DC and AC electrical characteristics, timing diagrams, and test setup procedures. It also includes a delay table for standard part numbers and notes on temperature and voltage effects on delay accuracy.
Dallas Semiconductor DS1005 specifications
| Number of taps | 5 |
|---|---|
| Delay range | 12 ns to 250 ns |
| Supply voltage (Vcc) | 4.75 V to 5.25 V |
| High‑level input voltage | 2.2 Vcc + 0.5 V |
| Low‑level input voltage | -0.5 V to 0.8 V |
| Active current | 40 mA to 70 mA |
| High‑level output current | -1.0 mA |
| Low‑level output current | 12 mA |
| Input capacitance | 5 pF to 10 pF |
All Dallas Semiconductor DS1005 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the delay range of the DS1005?
The DS1005 provides delays from 12 ns up to 250 ns.
How many taps does the DS1005 have?
It has five equally spaced taps.
What is the delay range of the DS1005?
The DS1005 provides selectable delays from 12 ns up to 250 ns.
From: Dallas Semiconductor DS1005 5‑Tap Silicon Delay Line Datasheet
How many taps does the DS1005 have?
It has five equally spaced taps.
From: Dallas Semiconductor DS1005 5‑Tap Silicon Delay Line Datasheet
