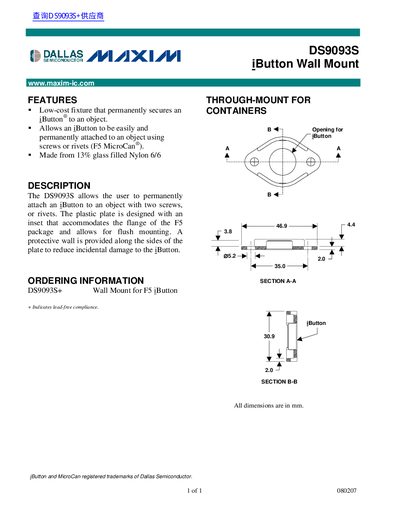

Dallas Semiconductor DS9093S iButton Wall Mount Product Leaflet
The DS9093S is a low-cost fixture designed to permanently attach an iButton to an object. It is made from 13% glass filled Nylon 6/6 and features an inset to accommodate the flange of the F5 package for flush mounting. A protective wall along the sides of the plate helps reduce incidental damage to the iButton.
The fixture allows the iButton to be easily and permanently attached using either screws or rivets. It is specifically designed for the F5 MicroCan package, providing a secure mounting solution through a dedicated opening.
Dallas Semiconductor DS9093S specifications
| Product Type | iButton Wall Mounts |
|---|---|
| Mounting Method | Screws or rivets |
| Package Compatibility | F5 MicroCan |
| Mounting Style | Flush mounting |
Source: Dallas Semiconductor DS9093S/DS9093P iButton Wall Mounts Product Leaflet
All Dallas Semiconductor DS9093S documents by type
Questions answered in these manuals
What material is the DS9093S made from?
The fixture is made from 13% glass filled Nylon 6/6.
From: Dallas Semiconductor DS9093S iButton Wall Mount Product Leaflet
What is the purpose of the DS9093S and DS9093P?
These fixtures permanently secure an iButton to an object using screws or rivets.
From: Dallas Semiconductor DS9093S/DS9093P iButton Wall Mounts Product Leaflet
What is the minimum required clearance for the iButton?
The iButton requires a minimum clearance of 3.0.
From: Dallas Semiconductor DS9093S/DS9093P iButton Wall Mounts Product Leaflet
