Start here

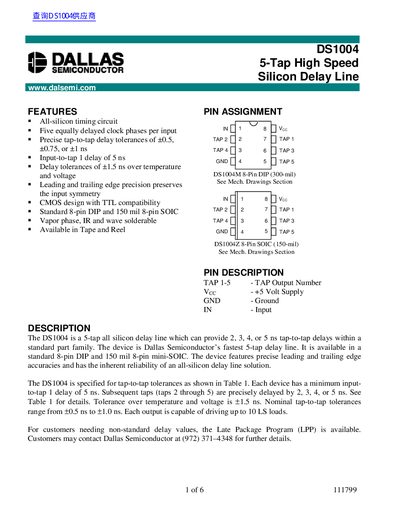

Dallas DS1004 5‑Tap High Speed Silicon Delay Line Datasheet
The DS1004 provides precise timing with five equally delayed clock phases per input. It features a CMOS design with TTL compatibility and can drive up to 10 LS loads per output. The device is offered in standard 8‑pin DIP and 150‑mil 8‑pin SOIC packages.
Electrical specifications include a supply voltage of 5 V, operating temperature from 0 °C to 70 °C, and absolute maximum ratings such as 50 mA short‑circuit output current. Detailed timing parameters are measured with a 20 ps resolution interval counter and are listed in the accompanying tables.
Dallas Semiconductor DS1004 specifications
| Input‑to‑Tap 1 delay | 5 ns |
|---|---|
| Tap‑to‑Tap delays | 2 ns, 3 ns, 4 ns, 5 ns |
| Supply Voltage (VCC) | 5 V ±5 % |
| Operating Temperature | 0 °C to 70 °C |
| Output Short‑Circuit Current | 50 mA for 1 s |
| Package Types | 8‑pin DIP, 150‑mil 8‑pin SOIC |
Source: Dallas DS1004 5‑Tap High Speed Silicon Delay Line Datasheet
All Dallas Semiconductor DS1004 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What tap‑to‑tap delay values does the DS1004 provide?
The device offers tap‑to‑tap delays of 2 ns, 3 ns, 4 ns, or 5 ns.
From: Dallas DS1004 5‑Tap High Speed Silicon Delay Line Datasheet
Which packages are available for the DS1004?
It is available in a standard 8‑pin DIP and a 150‑mil 8‑pin SOIC package.
From: Dallas DS1004 5‑Tap High Speed Silicon Delay Line Datasheet
What is the minimum input‑to‑tap 1 delay?
The minimum input‑to‑tap 1 delay is 5 ns.
From: Dallas DS1004 5-Tap High Speed Silicon Delay Line Datasheet
