This document describes the features and characteristics of the DS9072H-40R model, including its snap-in connection between SIP Stiks and motherboard, low insertion force, and redundant contacts. It also provides contact information for manufacturers to obtain more detailed specifications.

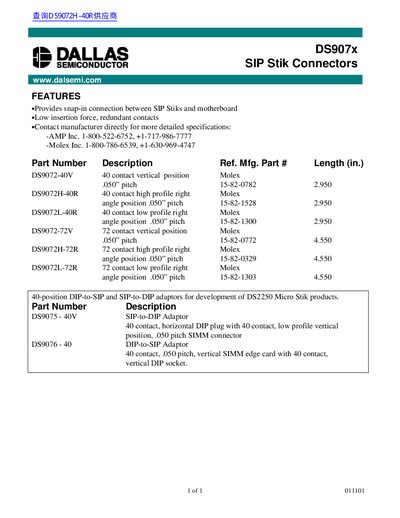

This document provides product information for the Dallas Semiconductor DS907x series of SIP Stik Connectors. These components provide a snap-in connection between SIP Stiks and motherboards, featuring low insertion force and redundant contacts.
The document lists specific part numbers such as the DS9072H-40R and DS9075, detailing their configurations like contact count (40 or 72), profile type (high or low), and orientation. It also notes compatibility with .AMP Inc. and Molex Inc. components.
These connectors provide a snap-in connection between SIP Stiks and a motherboard.
The DS9072-40V connector has a .050 pitch.
