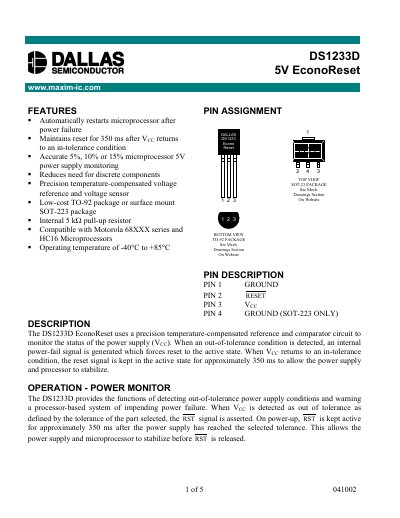

Dallas Semiconductor DS1233D EconoReset Datasheet
The DS1233D EconoReset monitors a 5 V supply and forces a reset when the voltage goes out of tolerance. It holds the reset active for about 350 ms after the supply returns to the acceptable range, allowing the processor and power supply to stabilize.
The device is offered in a low‑cost TO‑92 package or a surface‑mount SOT‑223 package, includes an internal 5 kΩ pull‑up resistor, and operates from –40 °C to +85 °C. Electrical characteristics such as VCC trip points (5 %, 10 %, 15 %) and low operating current (≈50 µA) are provided for system designers.
Dallas Semiconductor DS1233 specifications
| Supply Voltage VCC | 5.0 V (typ) |
|---|---|
| Operating Temperature | -40 °C to +85 °C |
| Reset Active Time | 350 ms (typ) |
| Internal Pull‑Up Resistor | 5 kΩ (typ) |
| VCC Trip Point (5 % tolerance) | 4.625 V (typ) |
All Dallas Semiconductor DS1233 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How long does the reset stay active after power returns?
The reset remains active for approximately 350 ms to let the supply and processor stabilize.
What is the value of the internal pull‑up resistor?
The device includes an internal pull‑up resistor of about 5 kΩ.
What is the typical reset active time for the DS1233?
The DS1233 holds the reset line active for about 350 ms after power returns to an in‑tolerance condition.
