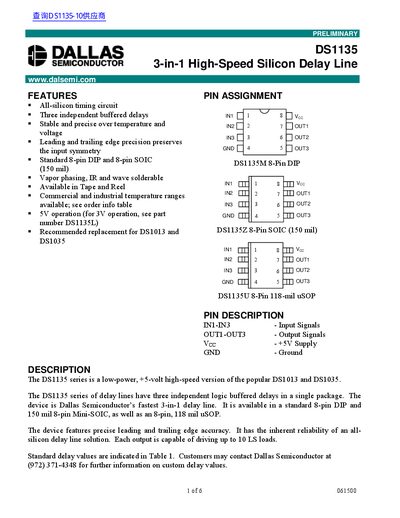

Dallas Semiconductor DS1135 Data Sheet
The document describes the DS1135 series of low-power, +5-volt high-speed silicon delay lines. The device features three independent logic buffered delays within a single package and is noted as Dallas Semiconductor's fastest 3-in-1 solution.
It is available in standard 8-pin DIP, 150 mil 8-pin Mini-SOIC, and 8-pin 118 mil uSOP packages. The datasheet provides detailed electrical characteristics, timing diagrams, absolute maximum ratings, and ordering information for various delay values ranging from 5ns to 30ns.
Dallas Semiconductor DS1135 specifications
| Supply Voltage | +5V (4.75V to 5.25V) |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Short Circuit Output Current | 50 mA for 1 second |
| Input Capacitance | 10 pF |
All Dallas Semiconductor DS1135 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available delay values for the DS1135?
The standard delay values range from 5ns to 30ns.
Which package types are available for the DS1135?
The device is available in DIP, SOIC (150 mil), and uSOP (118 mil) packages.
What is the operating temperature range of the DS1135L?
The device is rated for operation from –40 °C to +85 °C.
From: Dallas DS1135L High-Speed Silicon Delay Line Datasheet
Which package types are offered for the DS1135L?
It is available in a standard 8‑pin µSOP (118 mil) and an 8‑pin SO (150 mil) package.
From: Dallas DS1135L High-Speed Silicon Delay Line Datasheet
