Start here

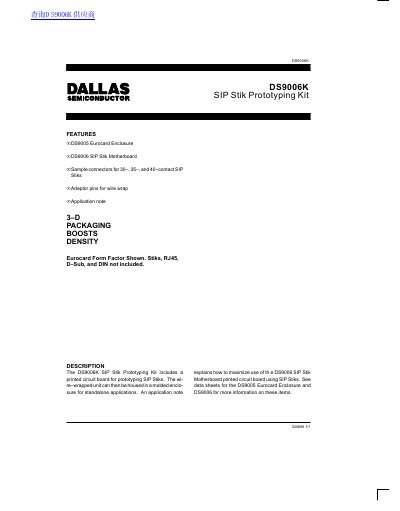

Dallas Semiconductor DS9006K SIP Stik Prototyping Kit Product Leaflet
The DS9006K SIP Stik Prototyping Kit includes a printed circuit board designed for prototyping SIP Stiks. The resulting wire-wrapped unit can be housed in a molded enclosure for standalone applications.
The kit features a DS9005 Eurocard Enclosure and a DS9006 SIP Stik Motherboard. It also provides sample connectors for 30, 35, and 40-contact SIP Stiks, along with adaptor pins for wire wrap. An application note is included to explain how to maximize the use of the motherboard.
Dallas Semiconductor DS9006 specifications
| Included Enclosure | DS9005 Eurocard Enclosure |
|---|---|
| Included Motherboard | DS9006 SIP Stik Motherboard |
| Included Connectors | Sample connectors for 30, 35, and 40-contact SIP Stiks |
| Included Adaptor Pins | Adaptor pins for wire wrap |
Source: Dallas Semiconductor DS9006K SIP Stik Prototyping Kit Product Leaflet
All Dallas Semiconductor DS9006 documents by type
Questions answered in these manuals
What is included in the DS9006K SIP Stik Prototyping Kit?
The kit includes a printed circuit board for prototyping SIP Stiks, sample connectors for 30-, 35-, and 40-contact SIP Stiks, and adaptor pins for wire wrap.
From: Dallas Semiconductor DS9006K SIP Stik Prototyping Kit Product Leaflet
What is the purpose of the DS9006 component in this kit?
The DS9006 serves as a motherboard designed for prototyping SIP Stiks on a printed circuit board.
From: Dallas Semiconductor DS9006K SIP Stik Prototyping Kit Product Leaflet
What is the DS9006 motherboard designed to do?
It serves as a developmental printed circuit board for prototyping designs that use Stik prefabs and RJ11/45 connectors.
From: Dallas Semiconductor DS9006 SIP Stik Motherboard Product Datasheet
How many Stik connectors can the board accommodate?
The motherboard provides allowance for up to 12 Stik connectors.
From: Dallas Semiconductor DS9006 SIP Stik Motherboard Product Datasheet
