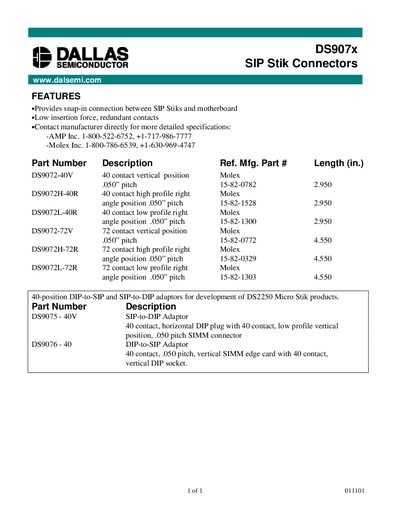

Dallas Semiconductor DS907x Series SIP Stick Connector Datasheet

About this manual

The document details the Dallas Semiconductor DS907x series of SIP Stick Connectors. These components provide a snap-in connection between SIP Stiks and motherboards, featuring low insertion force and redundant contacts.

Specific part numbers are listed for different configurations, including vertical positions (DS9072-40V), high profile right angle positions (DS9072H-40R), and low profile right angle positions (DS9072L-40R). The series also includes adaptors for DS2250 Micro Stik products, such as the 40-position DIP-to-SIP adaptor (DS9076) and SIP-to-DIP adaptor (DS9075).

What's inside

• Features
• Part Number Description
• Adaptors

Frequently asked questions

What is the stated purpose of the DS907x Series connectors?

They provide a snap-in connection between SIP Stiks and motherboards.

What is the pitch for the 40 contact vertical position connector?

The pitch is .050 inches.
