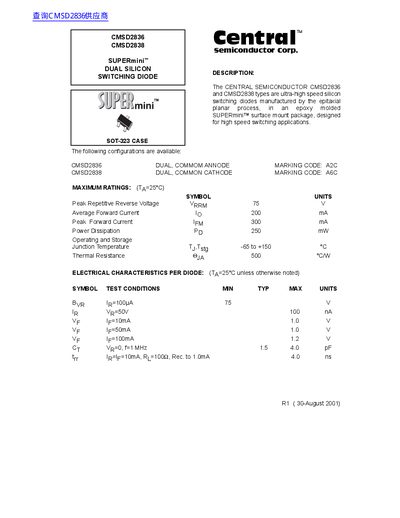

This document describes the CENTRAL SEMICONDUCTOR CMSD2836 and CMSD2838 types, which are ultra-high speed silicon switching diodes manufactured by the epitaxial planar process. These components are designed for high speed switching applications and come in an epoxy molded SUPERmini™ surface mount package.
| Peak Repetitive Reverse Voltage (VRRM) | 75 V |
|---|---|
| Average Forward Current (Io) | 200 mA |
| Peak Forward Current (IEM) | 300 mA |
| Power Dissipation (Pp) | 250 mW |
| Operating and Storage Junction Temperature Range | -65 to +150 °C |
| Thermal Resistance (OJA) | 500 °C/W |
The available configurations are Dual, Common Anode and Dual, Common Cathode.
The marking code for the CMSD2836 is A2C.
