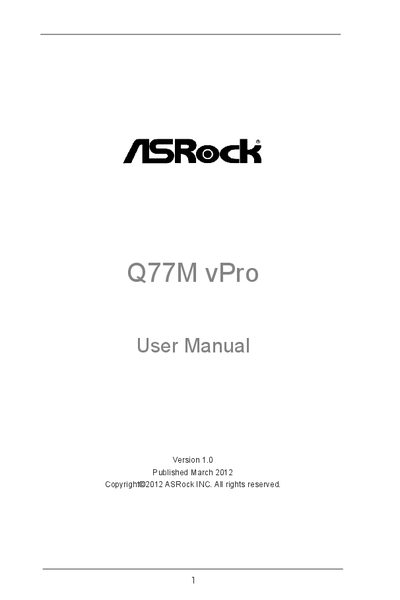

ASRock Q77M vPro Motherboard User Manual
This manual introduces the ASRock Q77M vPro motherboard, covering package contents, key specifications, and hardware layout. It guides users through installation of the CPU, memory, storage devices, and expansion cards, as well as configuring jumpers and onboard connectors.
The document also details the UEFI BIOS utility, including configuration screens for CPU, chipset, storage, and security settings, and provides software support information such as driver installation and operating‑system compatibility.
ASRock Q77M specifications
| Form Factor | Micro ATX (9.6 in x 9.6 in) |
|---|---|
| CPU Socket | 1155‑Pin LGA1155 |
| Chipset | Intel® Q77 |
| Memory Slots | 4 DDR3 DIMM slots |
| Maximum Memory | 32 GB |
| PCI Express Slots | 1 × PCIe 3.0 x16, 1 × PCIe 2.0 x16, 2 × PCI |
| SATA3 Connectors | 2 × 6.0 Gb/s |
| SATA2 Connectors | 4 × 3.0 Gb/s |
| USB 3.0 Ports | 2 rear ports + 1 front header |
All ASRock Q77M documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How many DDR3 DIMM slots does the Q77M vPro have?
It provides four DDR3 DIMM slots for memory modules.
What type of CPU socket is used on the Q77M vPro motherboard?
The board uses a 1155‑Pin LGA1155 socket.
What is the maximum memory capacity supported?
The motherboard can accommodate up to 32 GB of DDR3 memory across its four DIMM slots.
What form factor does the Q77M vPro motherboard use?
It uses the Micro ATX form factor measuring 9.6 inches by 9.6 inches.
