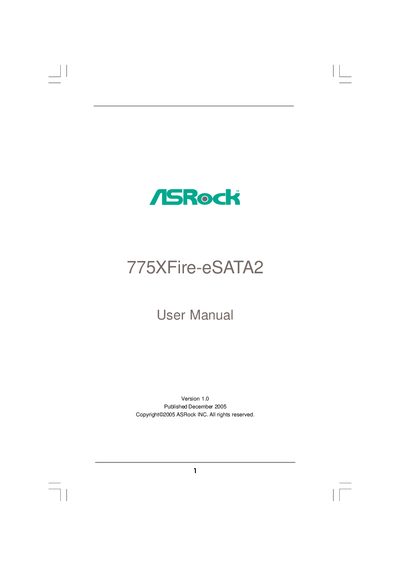

ASRock 775XFire-eSATA2 User Manual
This manual introduces the ASRock 775XFire-eSATA2 motherboard, lists the package contents, and guides you through hardware installation, including CPU, memory, heatsink, and expansion cards. It also covers the eSATAII interface, SATAII hard‑disk setup, RAID configuration, and the Support CD utilities.
The document details BIOS setup options, power‑management features, and provides full technical specifications such as chipset, memory capacity, expansion slots, audio and LAN controllers, as well as supported operating systems and certifications.
ASRock 775XFIRE-ESATA2 specifications
| Form Factor | ATX (12.0‑in x 8.6‑in) |
|---|---|
| CPU Socket | LGA775 |
| Supported CPUs | Intel Dual Core Pentium D, Pentium 4, Celeron |
| Front‑Side Bus | 800/533 MHz |
| Chipset | Northbridge Intel 945PL, Southbridge Intel ICH7R |
| Memory Slots | 4 × DDRII DIMM |
| Maximum Memory | 2 GB |
| Audio Codec | Realtek ALC660 5.1‑channel |
| LAN Controller | Realtek PCI LAN 8101L, 10/100 Mbps |
| USB Ports | 4 × USB 2.0 |
| eSATAII Ports | 2 |
| Supported Operating Systems | Microsoft Windows 2000, XP, XP 64‑bit |
| RAID Support | RAID 0, 1, 10, 5, Intel Matrix Storage |
All ASRock 775XFIRE-ESATA2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What operating systems are supported by the 775XFire‑eSATA2 motherboard?
It supports Microsoft Windows 2000, Windows XP, and Windows XP 64‑bit.
How many USB 2.0 ports does the motherboard provide?
The board includes four USB 2.0 ports.
What CPU socket does the 775XFire‑eSATA2 motherboard use?
It uses an LGA 775 socket that supports Intel Dual Core Pentium D, Pentium 4 and Celeron D processors.
How many USB 2.0 ports are available on the board?
The motherboard provides four ready‑to‑use USB 2.0 ports.
What CPU socket does the ASRock 775XFire-eSATA2 motherboard use?
It uses an LGA 775 socket for Intel® Dual Core, Pentium 4, and Celeron D processors.
Does the motherboard support eSATAII connections?
Yes, it includes two eSATAII 3.0 Gb/s ports.
