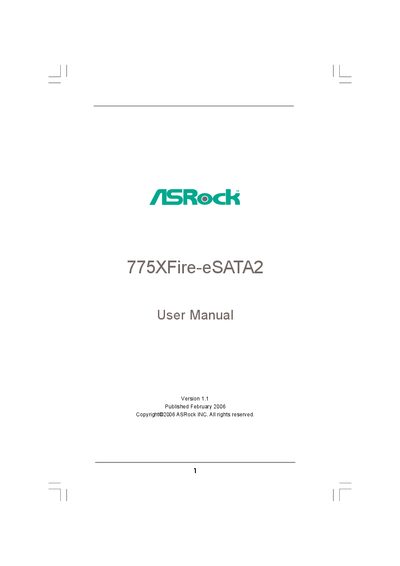

This is a user manual for ASRock 775XFire-eSATA2 motherboard
This manual introduces the ASRock 775XFire-eSATA2 motherboard, outlining its package contents, key specifications, and supported features. It serves as a guide for assembling the system, configuring BIOS settings, and using the supplied support CD.
The document is organized into sections covering hardware installation (CPU, memory, expansion cards, SATA/eSATAII devices), BIOS configuration, and software utilities. It also includes safety cautions, troubleshooting tips, and contact information for further assistance.
| Form Factor | ATX (12.0‑in x 8.6‑in) |
|---|---|
| CPU Socket | LGA 775 |
| Chipset | Northbridge Intel 945PL, Southbridge Intel ICH7R |
| Audio Codec | Realtek ALC660 5.1‑channel CODEC |
| LAN | Realtek PCI LAN 8101L, 10/100 Mbps |
| SATA Connectors | 4 x Serial ATAII 3.0 Gb/s connectors |
| eSATAII Ports | 2 x eSATAII 3.0 Gb/s ports |
| USB Ports | 4 x USB 2.0 ports |
It uses an LGA 775 socket for Intel® Dual Core, Pentium 4, and Celeron D processors.
Yes, it includes two eSATAII 3.0 Gb/s ports.
The board ships with a 4 Mb AMI BIOS.
